AGB Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
£ 60.00
Description

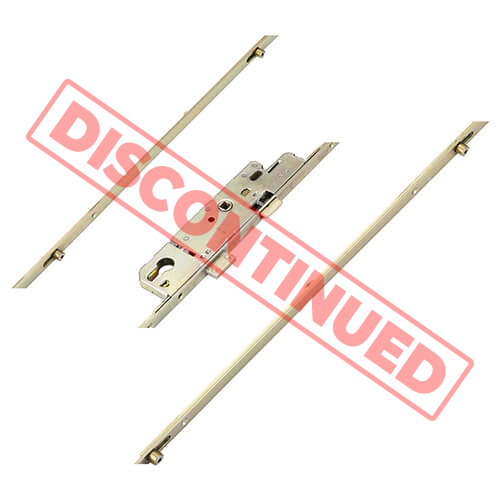

This part is discontinued and is no longer available.
However, for part AGB4R30: FU856T130 is a potential alternative. Similar product different brand
For part AGB4R35: ECO4R35 is a potential alternative. This replacement lock is from a different brand but has the same specification. Existing keeps can be re-used but they will need to be repositioned.
FU856T135 is also a potential alternative. Will require repositioning of keeps.
YADMUNI35 is additionally another potential alternative.
For part AGB4R45: ECO4R45 is a potential alternative. This replacement lock is from a different brand but has the same specification. Existing keeps can be re-used but they will need to be repositioned.
Part: FU856T145 is also a potential alternative. Similar product different brand. Part: YADMUNI45 is addtionally a potential alternative.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 30mm, 45mm, 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 4 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

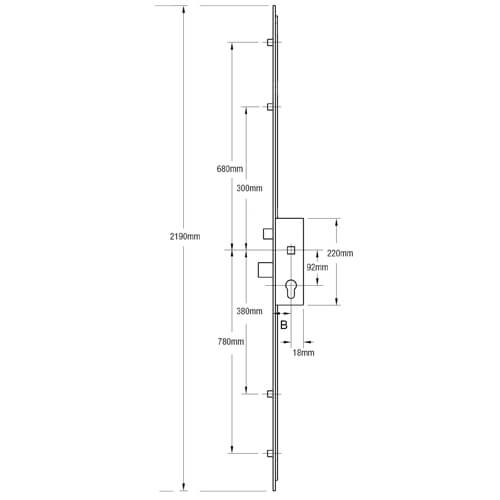

| Distance Between Inner Locking Points | 680mm |
| Distance Between Outer Locking Points | 1460mm |
| Height | 2190mm |
| Top Roller To Spindle | 680mm |
| Bottom Roller To Spindle | 780mm |
