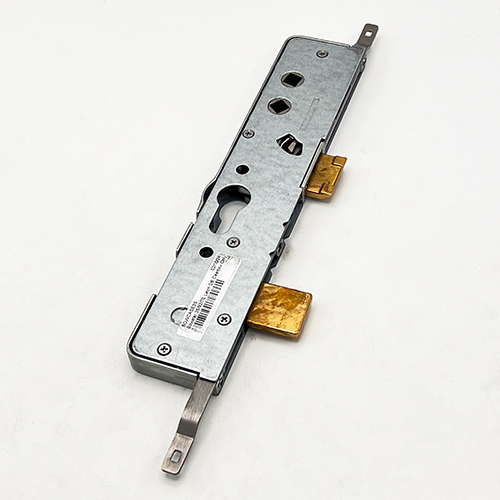

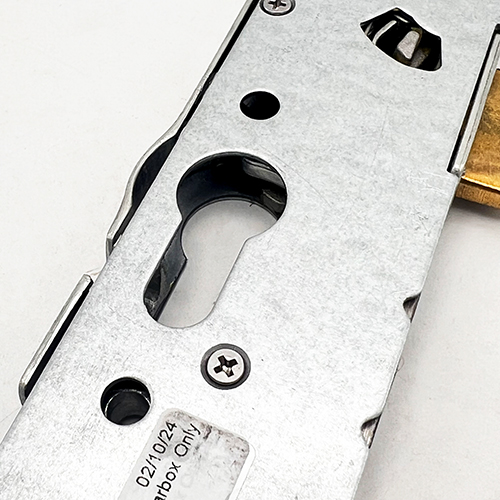

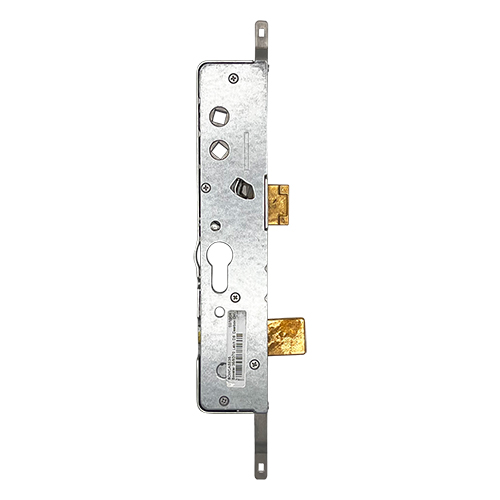

Bowater Genuine Multipoint Gearbox Double Spindle
£ 38.06
Description

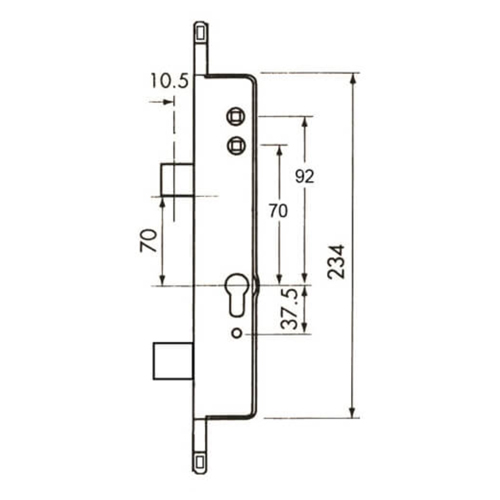

This Bowater gearbox has a 35mm backset with an unusual 92/70mm double spindle mechanism.
The case measures 234mm high by 52mm and self-tapping screws are required to fit it.
Please note that early versions of this gearbox use different screw positions and are not interchangeable.
Operation: Lift Lever
Latch reversal: Unscrew the lock case with the latch facing left, remove the flat positioning plate, remove the latch clip, remove the latch retaining spring, reverse the latch then reassemble
>
Additional information
| Backset | 35mm |
|---|---|
| Centres PZ | 92mm/70mm |
| Width | 52mm |
| Height | 234mm |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Spindle | Double 8mm |
| Type | Gearbox |
| Handing | Reversible |
| Cylinder Type | Euro |
| Genuine/Copy | Genuine |
| Brand | Bowater |
