Cego Surelock Latch Deadbolt 2 hooks 2 Rollers Double Spindle Multipoint Door Lock
Description

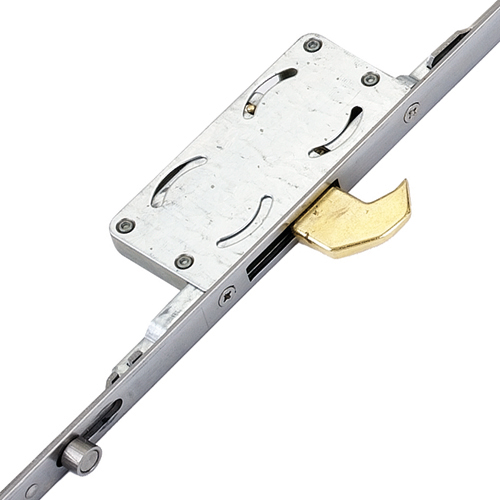

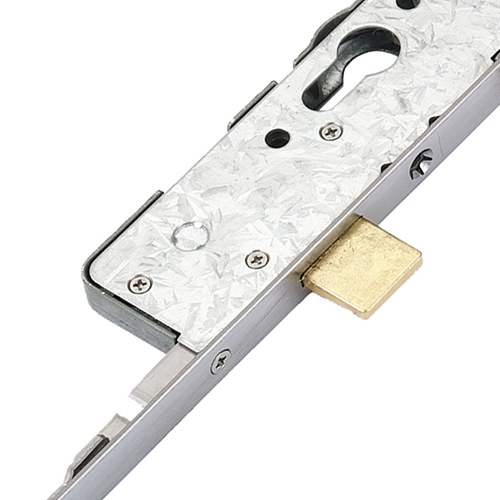

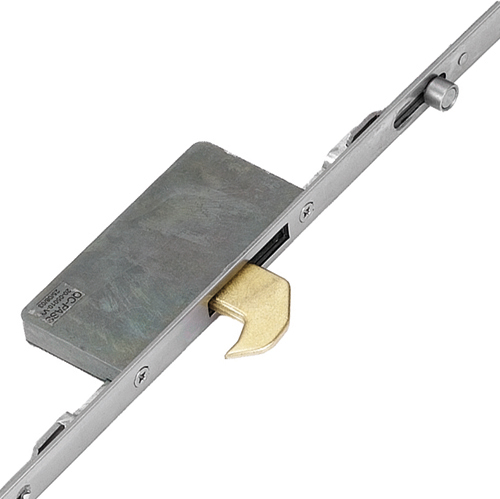

This Cego multipoint door lock features 2 Hooks, 1 Deadbolt & 1 Latch.
Operation: Double Spindle
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Lift the handle up to engage the locking points.
3. Lock the system by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points.
3. A further quarter turn of the key will retract the latch.
You may find this lock used as a timber door lock or a composite door lock.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 35mm |
| Centres PZ | 92mm/70mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Hooks | 2 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Double Spindle |
| Spindle | Double 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 1446mm |
| Distance Between Outer Locking Points | 1679mm |
| Height | 1910mm |
| Top Hook To Spindle | 723mm |
| Bottom Hook To Spindle | 723mm |
