ERA Latch Deadbolt 2 Hooks 2 Rollers Split Spindle Multipoint Door Lock – Option 1
Price range: £ 64.86 through £ 146.44
Description
ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward or Cego.
Originally designed to replace GU, Lockmaster and Winkhaus locks without the need for new routing positions these locks are available in 2 options.
Backset: 28mm 30mm 35mm and 45mm.
Centres: 92mm.
Operation: Lift lever or split spindle nightlatch.
Latch reversal: Undo the screws in the latch to remove. Reverse, reinsert and replace screws.
Additional information
| Discontinued | No |
|---|---|
| Backset | 30mm, 45mm, 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Hooks | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Split Spindle |
| Shootbolt Attachments | Yes |
| Spindle | Split 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

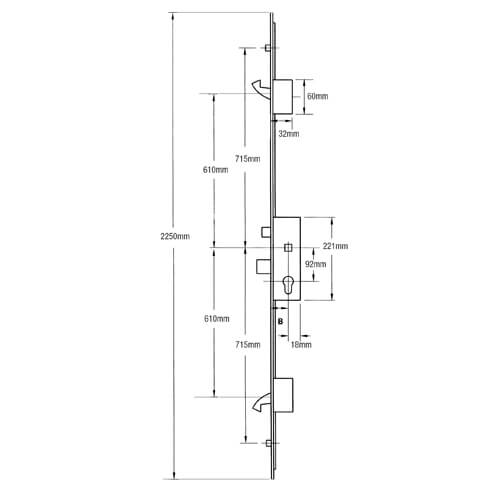

| Distance Between Inner Locking Points | 1220mm |
| Distance Between Outer Locking Points | 1430mm |
| Height | 2250mm |
| Top Hook To Spindle | 610mm |
| Bottom Hook To Spindle | 610mm |
| Top Roller To Spindle | 715mm |
| Bottom Roller To Spindle | 715mm |
