Description

ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward or Cego.

Originally designed to replace GU, Lockmaster and Winkhaus locks without the need for new routing positions these locks are available in 2 options.

All ERA locks are available with the compatible gearboxes below. Please enquire with us for more details.

Backset: 28mm 30mm 35mm and 45mm.

Centres: 92mm

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Undo the screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screws.

Additional information

Discontinued

No

Backset

30mm, 45mm, 35mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Rollers

4

Deadbolts

1

Latch

1

Main Gearbox

Latch and deadbolt

Operation

Split Spindle

Shootbolt Attachments

Yes

Spindle

Split 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

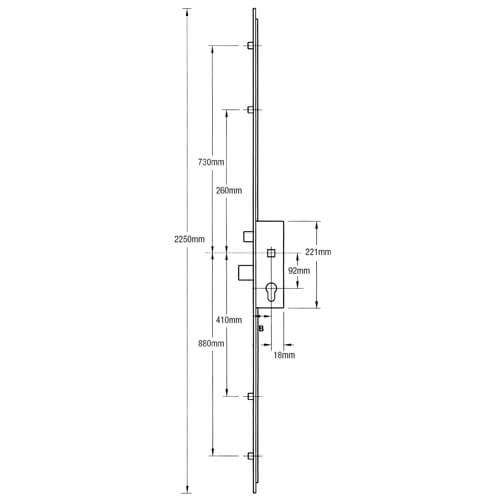

Distance Between Inner Locking Points

670mm

Distance Between Outer Locking Points

1610mm

Height

2250mm

Top Roller To Spindle

730mm

Bottom Roller To Spindle

880mm
