Era Vectis Classic Lever Moveable Pad UPVC Multipoint Door Handles – 95mm PZ Sprung 122mm Screw Centres
£ 23.14
Description
This handle set is specifically designed to fit the ERA Vectis range of multipoint locks which have a standard UK keyway.
From the Vectis Classic range these have a sprung 95pz internal lever handle & external moveable pad, with a backplate lof 220mm x 32mm they are available in white and gold finishes.

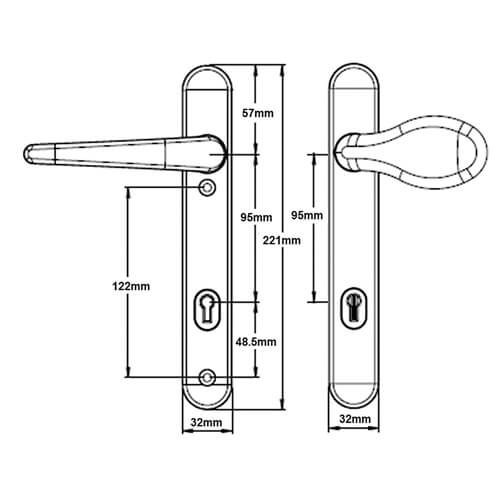

The distance between the fixing screws is 122mm with the bottom screw positioned 30mm below the keyway.

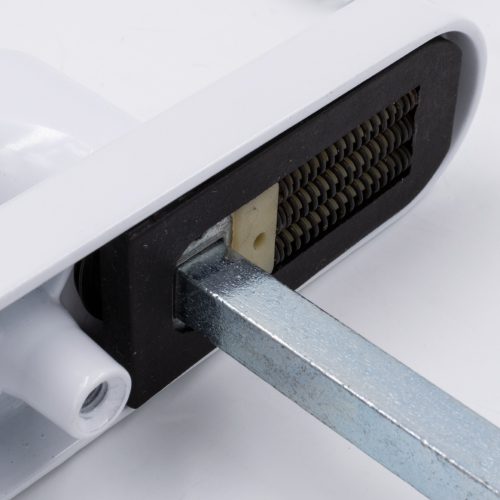

They are supplied as a pair complete with fixings consisting of spindle & colour co-ordinated screws.
Additional information
| Centres PZ | 95mm |
|---|---|
| Screw Centres | 122mm |
| Backplate Length | 221mm |
| Backplate Width | 32mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | White |
| Lowest Screw To Base Of Euro | 31mm |
| Top Screw To Spindle | 20mm |
