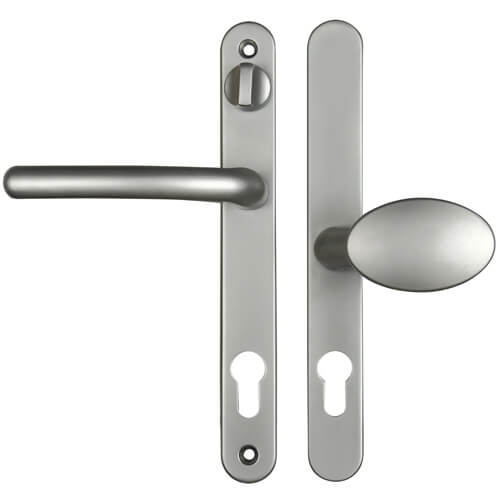

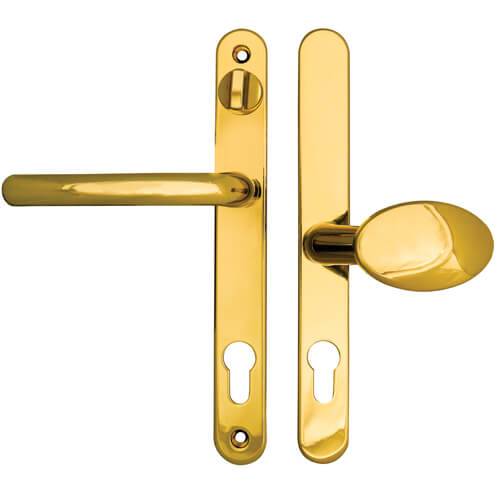

Fab & Fix Balmoral Lever Moveable Pad UPVC Multipoint Door Handles – with Snib 92mm/62mm Sprung 212mm Screw Centres
Price range: £ 19.43 through £ 41.93
Description

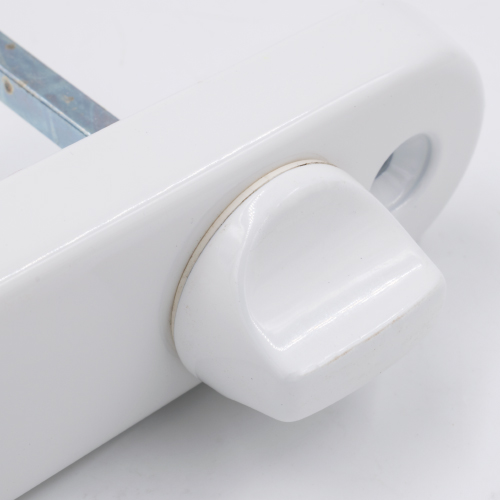

These Fab & Fix handles from the Balmoral range have a sprung 92pz internal lever handle and a 62pz external moveable pad. With a backplate of 240mm x 32mm, featuring a holdback facility snib, they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

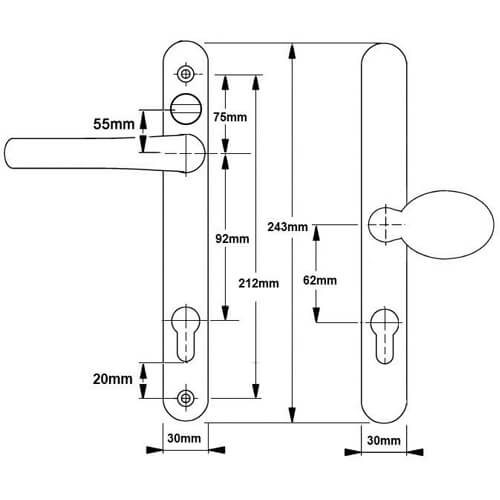

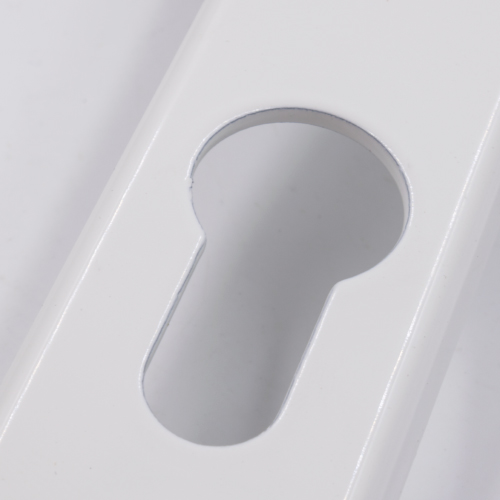

The distance between the fixing screws is 212mm with the bottom screw positioned 20mm below the euro profile cut-out.

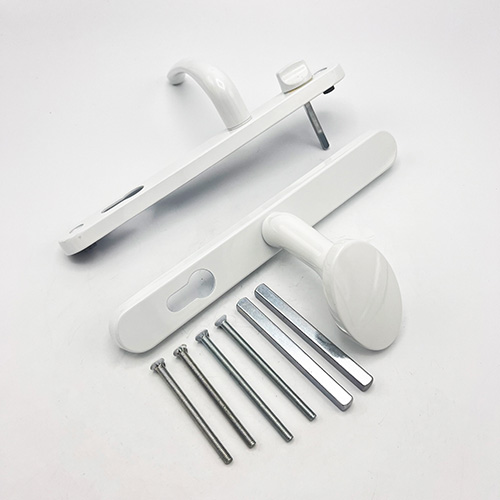

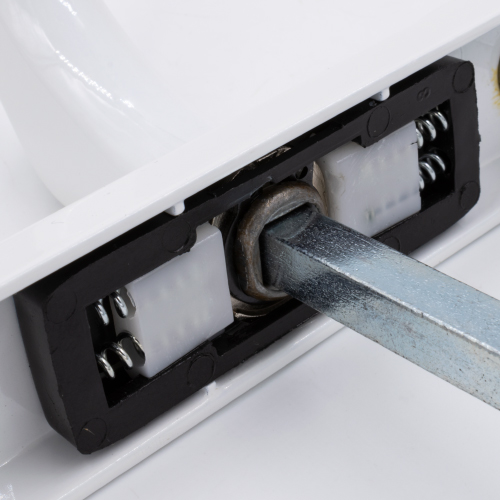

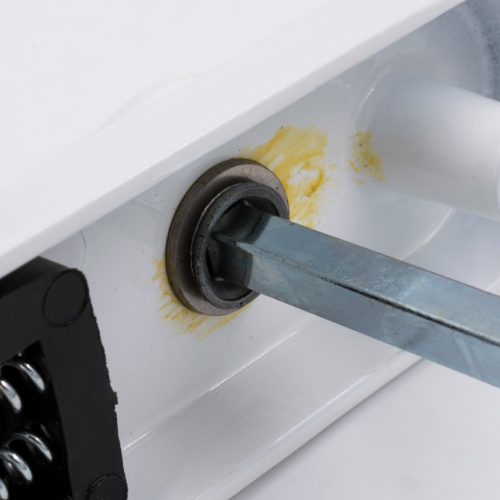

They are supplied as a pair complete with fixings consisting of 2 spindles, 2 colour co-ordinated screws and spring cassettes.
Additional information
| Centres PZ | 92mm/62mm |
|---|---|
| Screw Centres | 212mm |
| Backplate Length | 243mm |
| Backplate Width | 30mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Brass, Chrome, Silver, White |
| Lowest Screw To Base Of Euro | 20mm |
| Top Screw To Spindle | 75mm |
