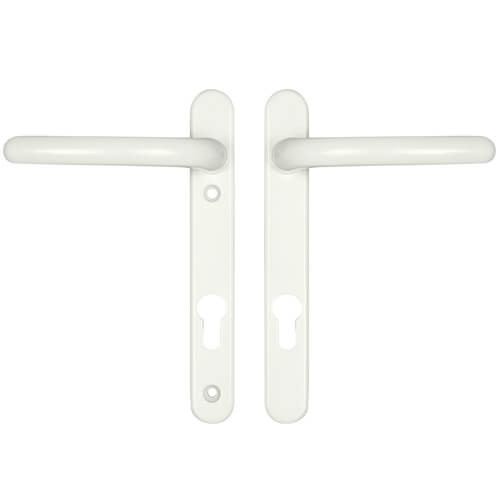

Fab & Fix Windsor Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres
Price range: £ 22.43 through £ 25.43
Description

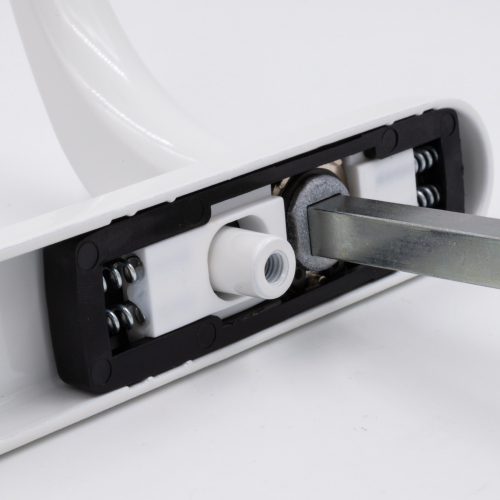

These extremely popular Fab & Fix handles from the Windsor range have sprung 92pz internal & external levers. With a backplate of 205mm x 28mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

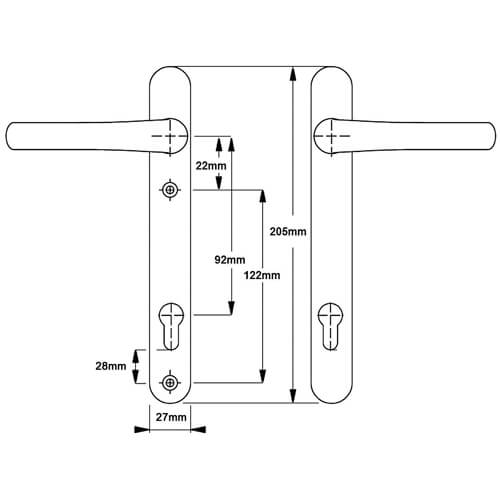

The distance between the fixing screws is 122mm with the bottom screw positioned 28mm below the euro profile cut-out.

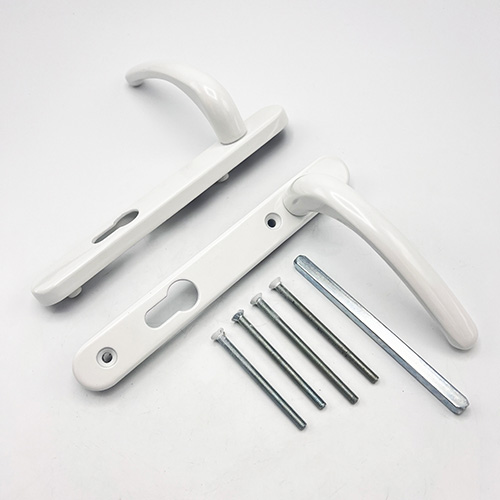

They are supplied as a pair complete with fixings consisting of spindle & 2 colour co-ordinated screws.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 122mm |
| Backplate Length | 205mm |
| Backplate Width | 27mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |

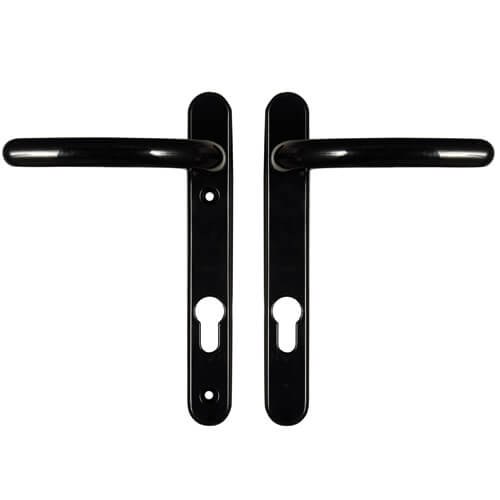

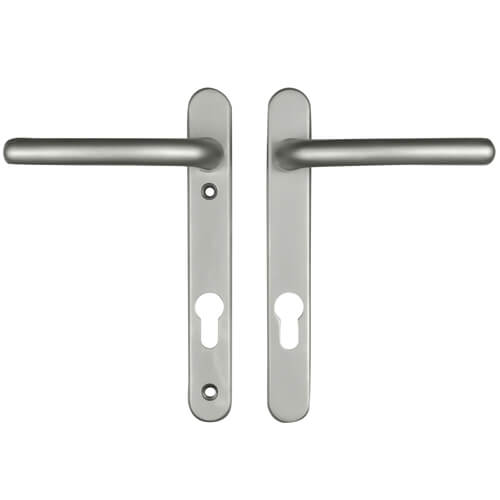

| Colour | Black, Brass, Chrome, Silver, White |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 28mm |
| Top Screw To Spindle | 22mm |
