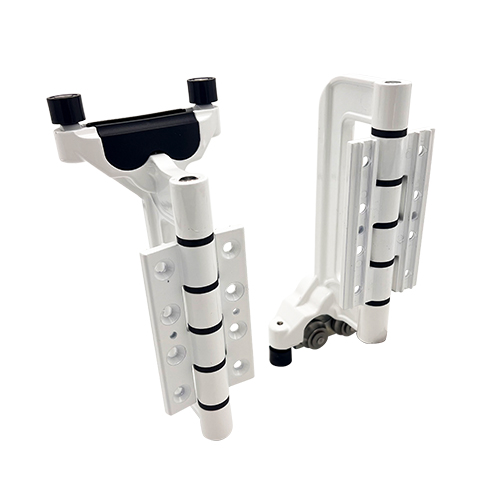

Fenster Top & Bottom Roller Set – Slimline
£ 125.19
Description
This Fenster bifold door roller set is supplied as a pair of top and bottom rollers. Available in white or black finishes, the height of the rollers can be adjusted by +/-4mm.
Additional information

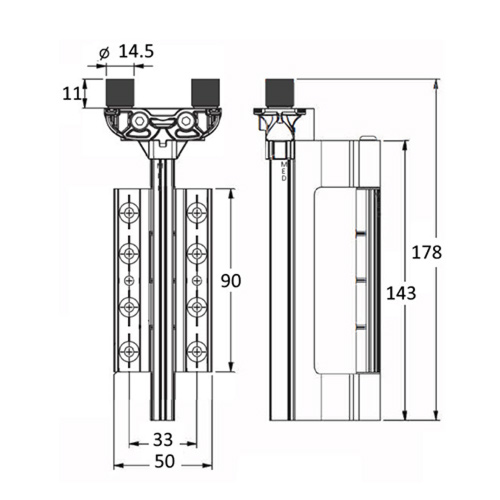

| Type | Bottom Roller Hinge |
|---|---|
| Colour | Black, White |
| Overall Height | 178mm |
| Hinge Height | 90mm |
| Hinge Width When Open | 50mm |
| Diameter of Knuckle | 17mm |
| Hinge Screw Centres | 33mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 4 |
| Top to Bottom Fixing Hole | 69mm |
| Top to Middle Fixing Hole | 35mm |
| Middle to Bottom Fixing Hole | 35mm |
| 2nd to 4th Fixing Hole | 23mm |
| 3rd to 5th Fixing Hole | 35mm |
| Roller Height | 11mm |
| Roller Diameter | 14.5mm |
| Roller Centres | 66mm |
