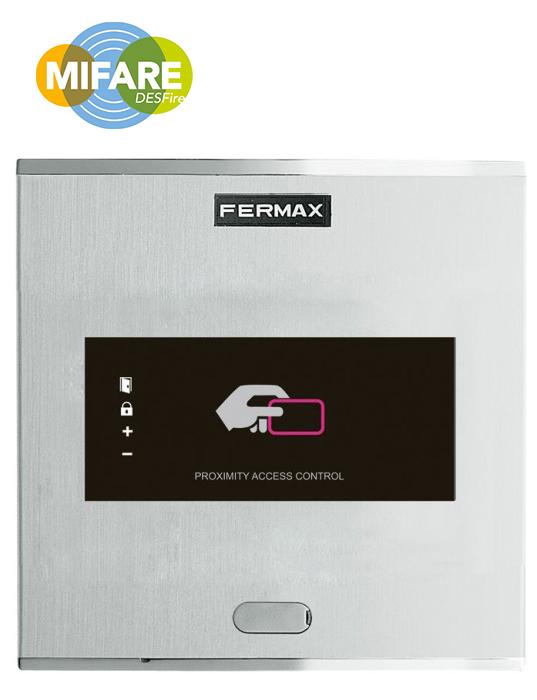

Fermax 6957 Cityline Desfire Proximity Reader

Reader that allows the door to be opened by bringing a proximity card or key ring closer. Only authorized cards or key fobs will activate the device. No need for physical contact.

Proximity reader that by means of a configuration of dipswitches that it incorporates can work in an autonomous or centralized system.

Configuration as AUTONOMOUS.

Capacity of up to 400 user cards or keyrings.

Reader and controller integrated in the same module.

Configuration as CENTRALIZED with Wiegand 26 or Data / Clock protocol. (AC-MAX Compatible)

Access control module, to be incorporated into SKYLINE and CITYLINE door entry / video door entry panels.

Recommended for indoors and outdoors.

Identifiers compatible with cards and keyrings DESFIRE EV2 brand FERMAX

Supply voltage 12 Vdc

Consumption in standby 45 mA

Active relay consumption 85 mA

Functional temperature -15ºC to + 55ºC

Relative humidity 5-95% (non-condensing)

IP 43

IK 07
