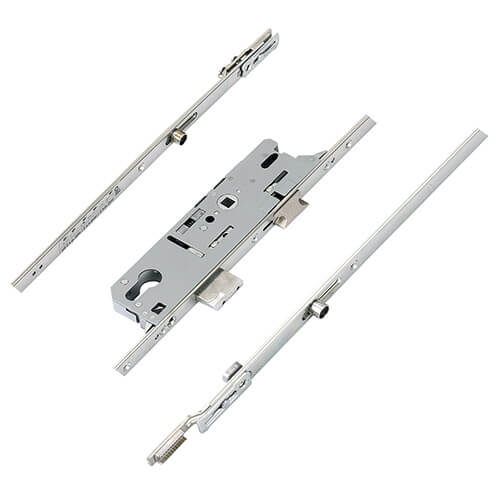

Fuhr Multipoint Door Lock Centre Section Latch Deadbolt 2 Rollers Lift Lever
Price range: £ 78.89 through £ 83.24
Description
This part is discontinued and is no longer available.
However, for part FU98Z525: FU856T125 is a potential alternative. This is the same lock but the full length version, rather than 2 part.
For part FU98Z530: FUHRCASE30 is a potential alternative. As this lock is discontinued, we’d recommend a replacement gearbox. If a full, replacement lock is required, a VERSA V-MPL repair lock can be used. Some adjustments will be required but it is supplied with keeps for any new locking positions.
For part FU98Z535: FU856T135 is a potential alternative. This is the same lock but the full length version, rather than 2 part.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 25mm, 30mm, 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | Yes |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 3 |
| Handing | Non Handed |

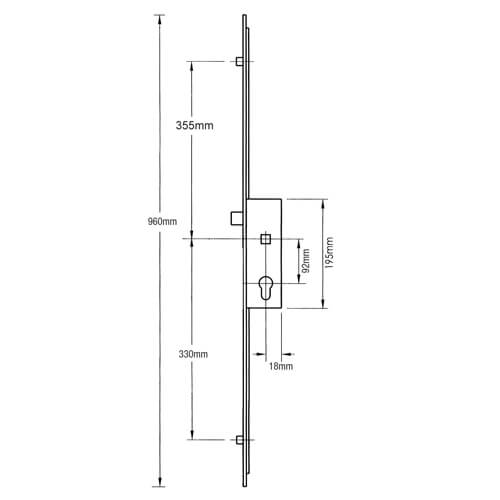

| Distance Between Inner Locking Points | 685mm |
| Height | 960mm |
| Top Roller To Spindle | 335mm |
| Bottom Roller To Spindle | 330mm |
