Hoppe Atlanta Lever Fixed Pad UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres
Price range: £ 34.25 through £ 40.80
Description

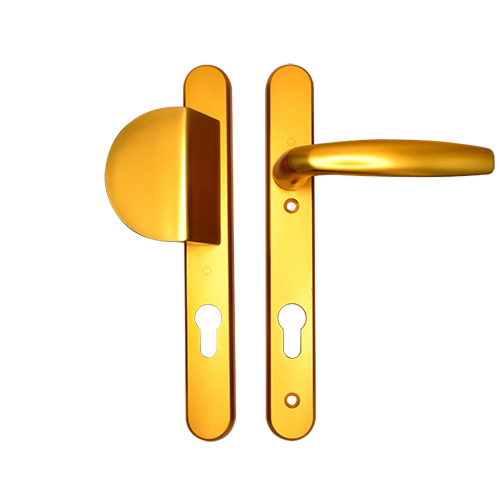

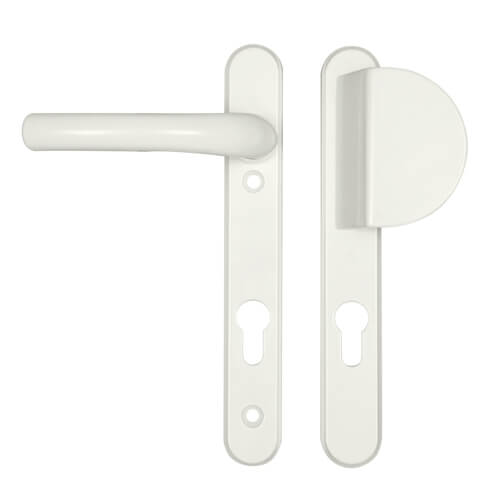

This Hoppe handle set is from the Atlanta range. It has a sprung 92pz internal lever handle and an external fixed pad on a 240mm x 32mm wide backplate which is available in various finishes.

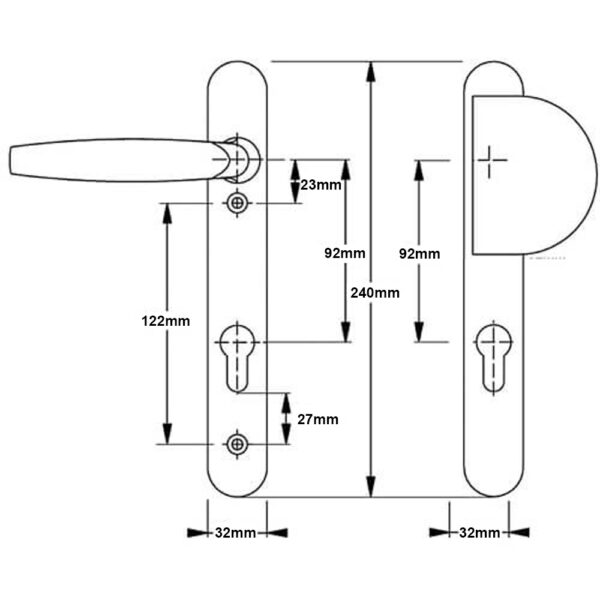

The distance between the fixing screws is 122mm with the bottom screw positioned 23mm below the euro profile cut-out.
They are supplied as a pair complete with fixings consisting of spindle, 2 colour co-ordinated screws and a spring cassette.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 122mm |
| Backplate Length | 220mm |
| Backplate Width | 32mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Gold, Silver, White |
| Lowest Screw To Base Of Euro | 27mm |
| Top Screw To Spindle | 22mm |
