Hoppe Atlanta PAS24 Lever Lever UPVC Multipoint Door Handles – 92mm PZ Unsprung 122mm Screw Centres
£ 43.67 – £ 71.45Price range: £ 43.67 through £ 71.45
Description

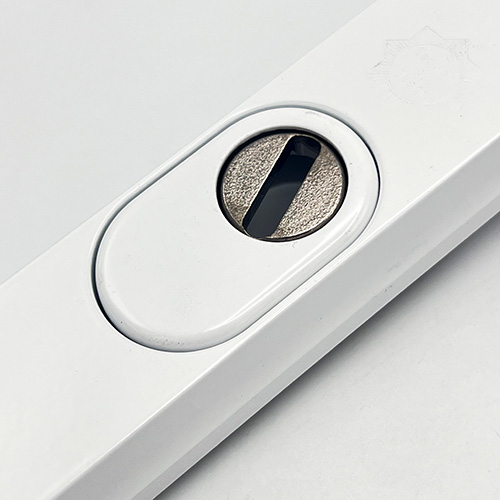

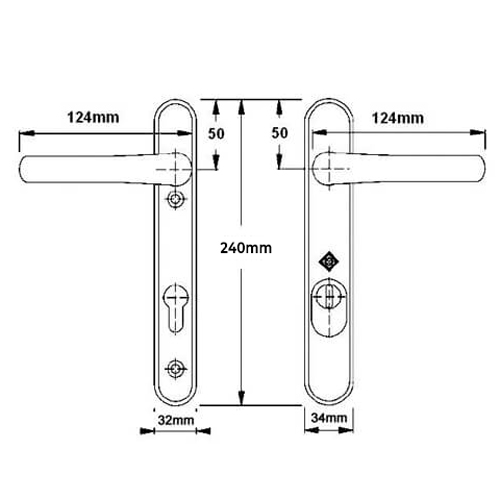

These Hoppe handles from the Atlanta range have an enhanced security standard which has been tested and proven to PAS 24. The external handle features a hardened steel cylinder cover for cylinder projection of 10-18mm. With sprung 92pz internal & external levers and a backplate size of 240mm x 35mm they are available in various finishes.
The distance between the fixing screws is 122mm with the bottom screw positioned 26mm below the euro profile cut-out.

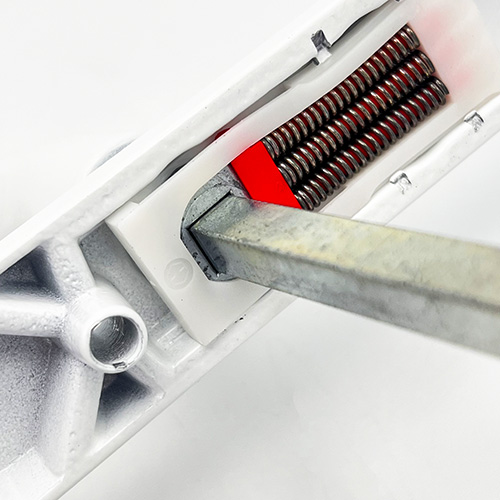

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M6 screws and an M10 security fixing bolt to suit door thickness 70mm.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 122mm |
| Backplate Length | 220mm |
| Backplate Width | 34mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Chrome, Gold, Silver, White |
| Packaging | Boxed |
| Lowest Screw To Base Of Euro | 27mm |
| Top Screw To Spindle | 23mm |
