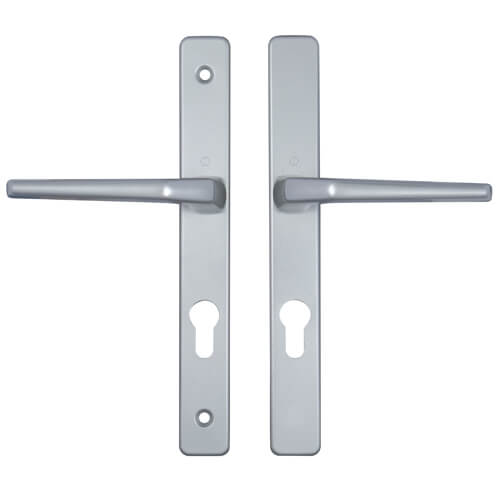

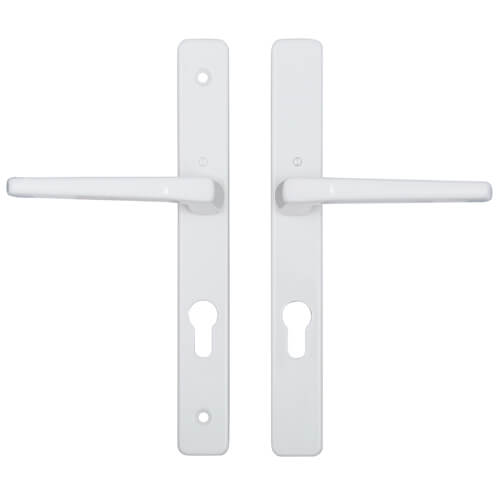

Hoppe Frankfurt Lever Lever UPVC Multipoint Door Handles – 70mm PZ Unsprung 200mm Screw Centres
Price range: £ 34.43 through £ 42.90
Description
These Hoppe handles from the Frankfurt range have unsprung 70pz internal & external levers. With a backplate size of 245mm x 30mm, they are available in various finishes and are commonly used with GU Ferco multipoint locks with a 7mm follower. These handles are not compatible with spring cassettes.

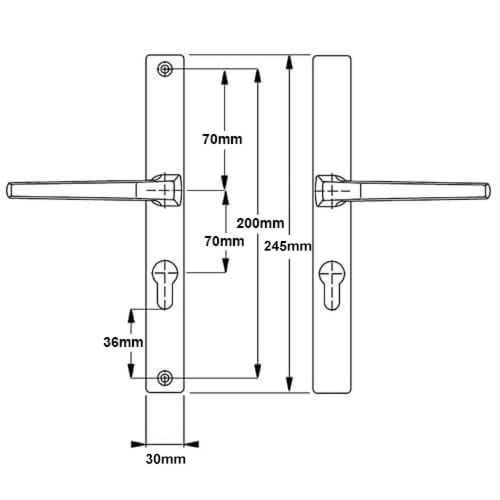

The distance between the fixing screws is 200mm with the bottom screw positioned 36mm below the euro profile cut-out.

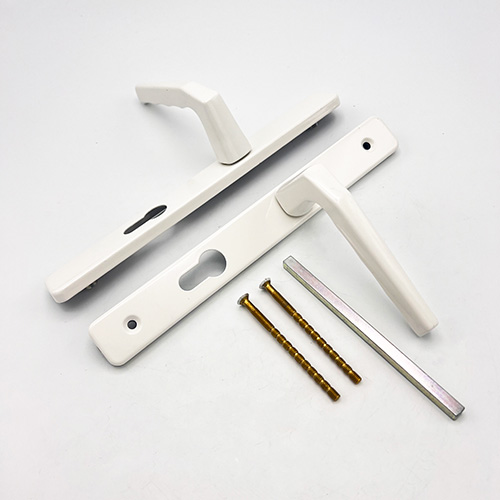

They are supplied as a pair complete with a 7mm square spindle & 2 colour coordinated bolt through fixing screws.
Additional information
| Centres PZ | 70mm |
|---|---|
| Screw Centres | 200mm |
| Backplate Length | 245mm |
| Backplate Width | 30mm |
| Spindle Size | 7mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Gold, Silver, White |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 36mm |
| Top Screw To Spindle | 70mm |
