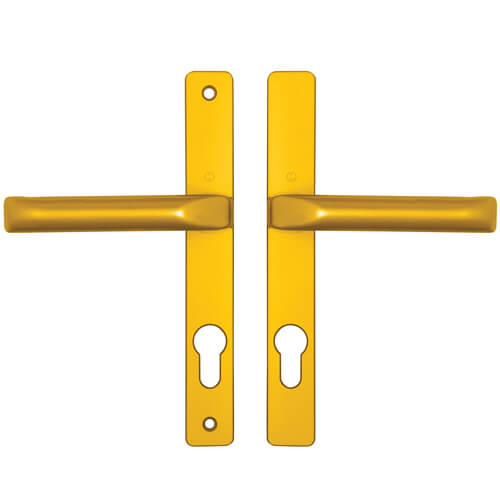

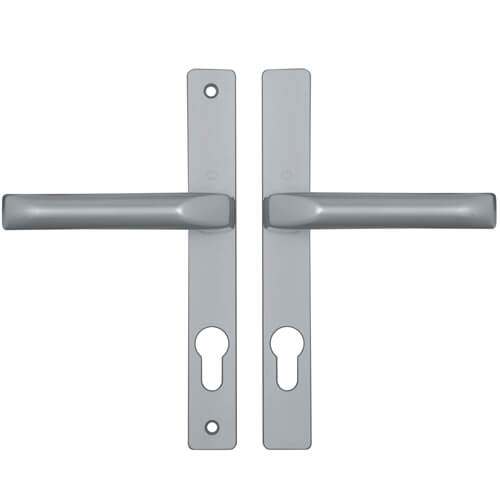

Hoppe London Lever Lever UPVC Multipoint Door Handles – 70mm PZ Unsprung 180mm Screw Centres
Price range: £ 24.59 through £ 29.33
Description
These Hoppe handles from the London range have unsprung 70pz internal & external levers. With a backplate size of 205mm x 28mm they are available in various finishes and are commonly used with GU Ferco multipoint locks with a 7mm follower. These handles are not compatible with spring cassettes.

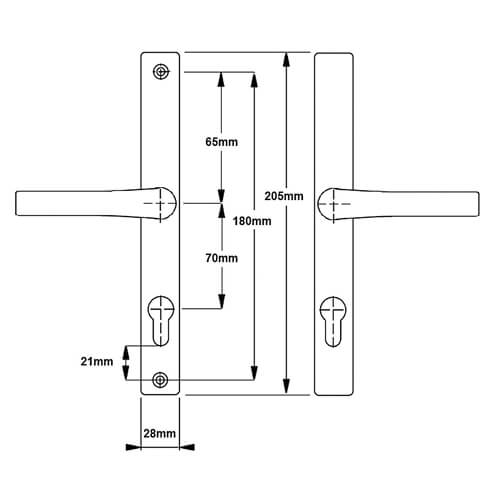

The distance between the fixing screws is 180mm with the bottom screw positioned 21mm below the euro profile cut-out.

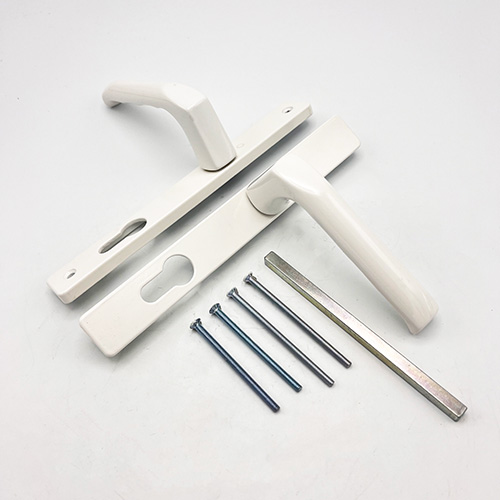

They are supplied as a pair complete with a 7mm square spindle & 2 colour co-ordinated bolt through M4 screws to suit door thickness 58-72mm.
Additional information
| Centres PZ | 70mm |
|---|---|
| Screw Centres | 180mm |
| Backplate Length | 205mm |
| Backplate Width | 28mm |
| Spindle Size | 7mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Black, Gold, Silver, White |
| Packaging | Polybagged |
| Lowest Screw To Base Of Euro | 21mm |
| Top Screw To Spindle | 65mm |
