Hoppe Tokyo Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 215mm Screw Centres
Price range: £ 23.25 through £ 35.22
Description

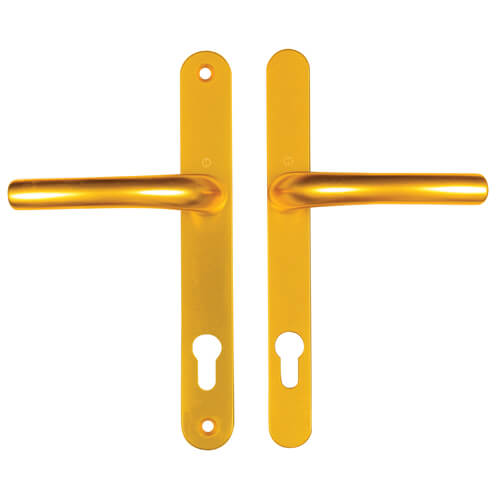

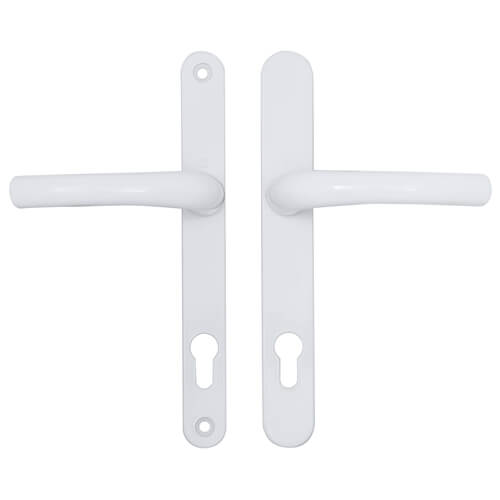

These Hoppe handles from the Tokyo range have sprung 92pz internal & external levers. With a backplate size of 240mm they are available in various finishes.

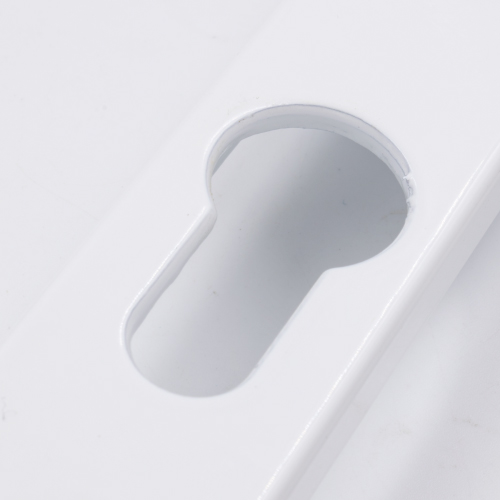

The distance between the fixing screws is 215mm with the bottom screw positioned 23mm below the euro profile cut-out.

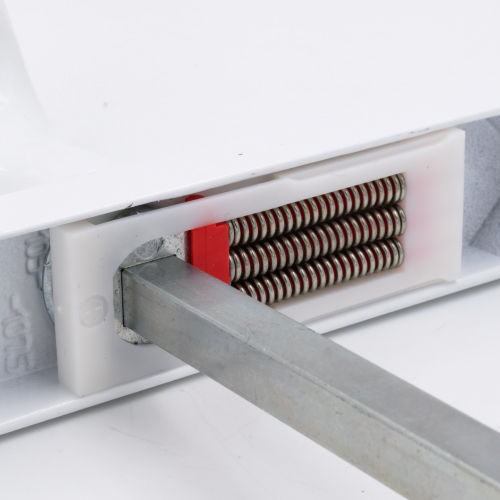

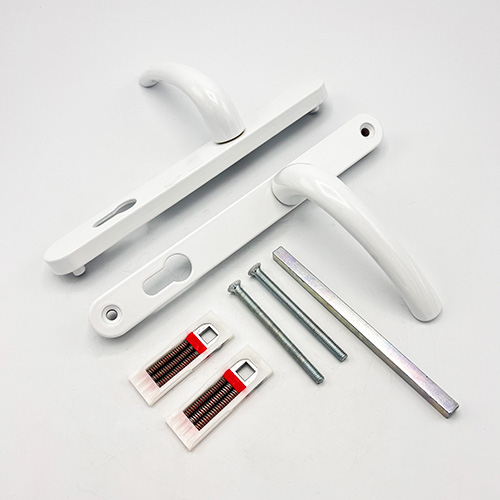

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M6 screws to suit door thickness 62-71mm.
Additional information

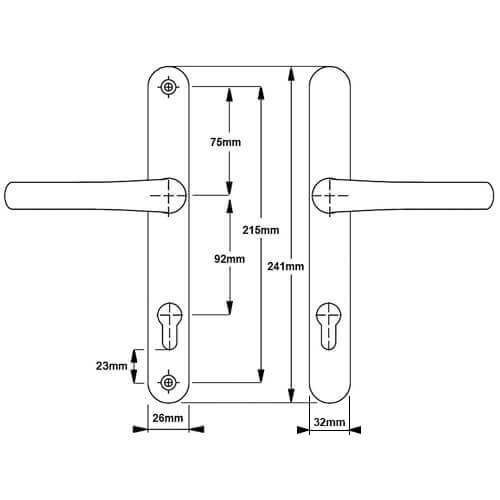

| Centres PZ | 92mm |
|---|---|
| Screw Centres | 215mm |
| Backplate Length | 241mm |
| Backplate Width | 26mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | Black, Gold, Silver, White |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 23mm |
| Top Screw To Spindle | 75mm |
