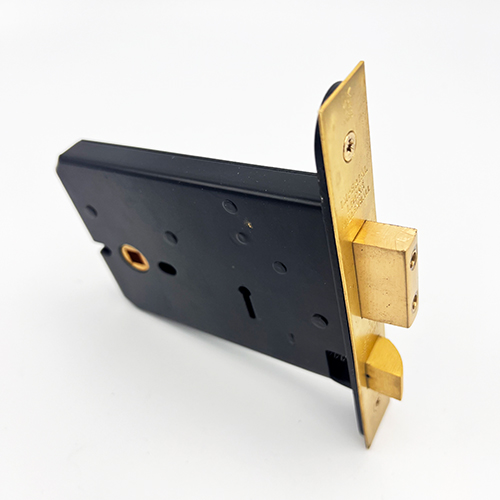

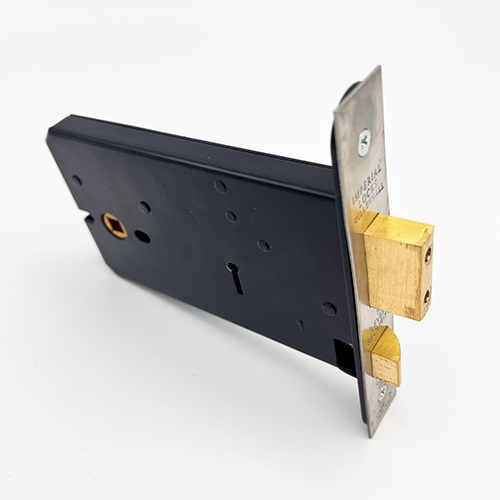

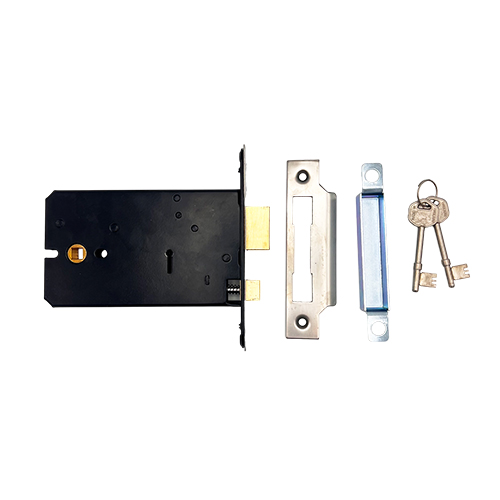

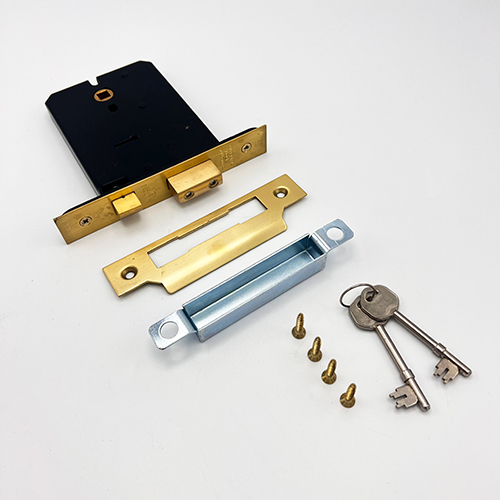

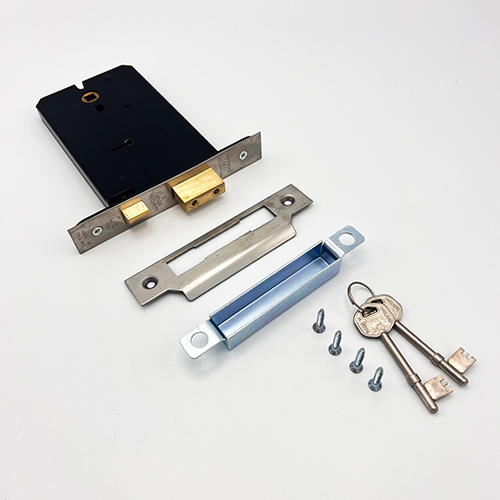

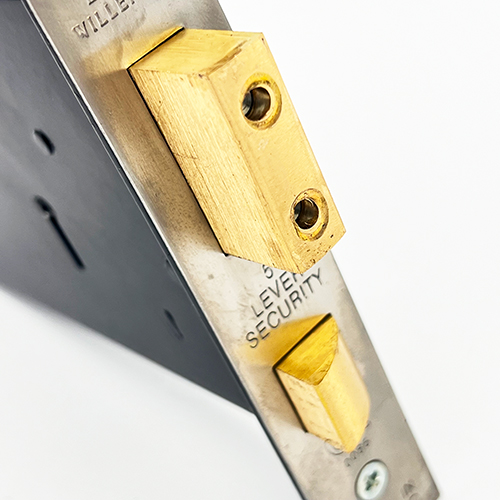

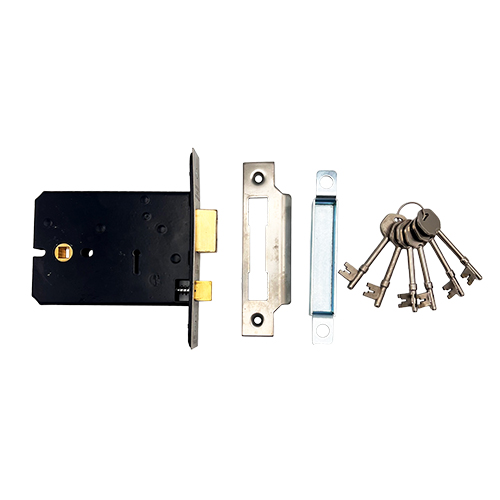

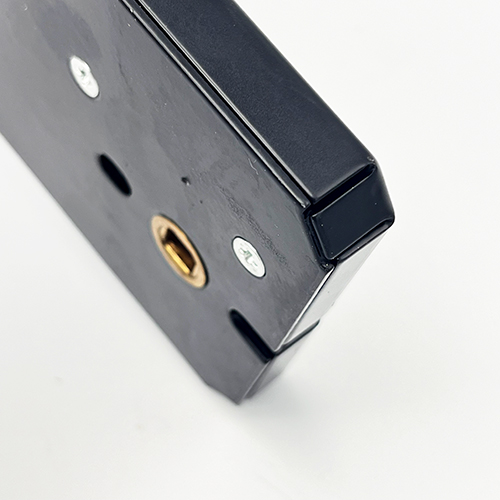

Imperial G5011/G5012 Horizontal Non British Standard 5 Lever Mortice Sashlock
Price range: £ 63.28 through £ 65.70
Description
These Imperial G5011/G5012 mortice sashlocks are 5 lever mortice locks, available with a case depth of 5 inches / 127mm or 6 inches / 150mm
The latch is operated by a lever handle on either side, the deadbolt is operated by a key from either side. Pierced to accept 38mm bolt through furniture. The latch is easily reversible, enabling these mortice locks to be used on either side of a door.
These are CE marked, tested to BS EN 12209 and fire tested to BS EN 1634-1:2000 standards.
Additional information

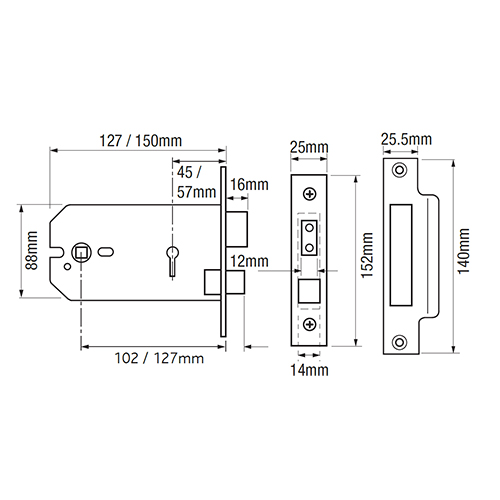

| Backset | 45mm, 57mm |
|---|---|
| Case Height | 88mm |
| Case Width | 5 inch / 127mm, 6 inch / 150mm |
| Centres | 57mm, 70mm |
| Faceplate Length | 152mm |
| Faceplate Width | 25mm |
| Type | Mortice Sashlock |
| Finish | Brass, Satin Chrome |
| Packaging | Boxed |
| Description | Horizontal |
| No Of Keys | 2 |
| Case Colour | Black |
| Deadbolt Throw | 16mm |
| Follower | 8mm |
| British Standard | No |
| UKCA | No |
| CE | Yes |
| Certifire | No |
| Fire Rated | 60 mins |
| Can Be Keyed Alike? | Yes |
