KFV Latch Deadbolt 2 Hook Split Spindle Multipoint Door Lock (top hook to spindle = 730mm)
£ 102.65
Description
This part is discontinued and is no longer available.
However, for part AS490045: 1504653 is a potential alternative. Same hook positions and functions.
Part: KFVCASE45 is also a potential alternative. As this lock is discontinued, we’d recommend a replacement gearbox. If a full, replacement lock is required, a VERSA V-MPL repair lock can be used. Some adjustments will be required but it is supplied with keeps for any new locking positions.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 45mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Hooks | 2 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Split Spindle |
| Spindle | Split 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

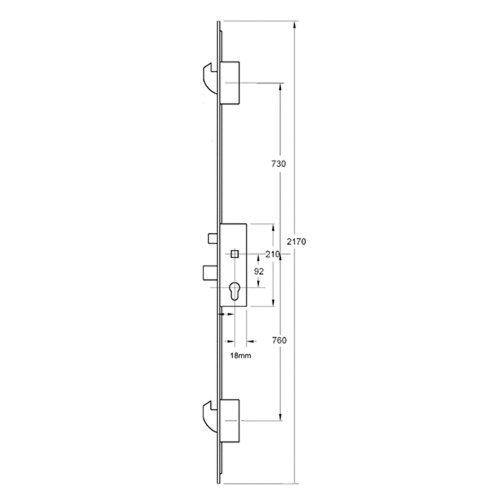

| Distance Between Inner Locking Points | 1490mm |
| Height | 2170mm |
| Top Hook To Spindle | 730mm |
| Bottom Hook To Spindle | 760mm |
