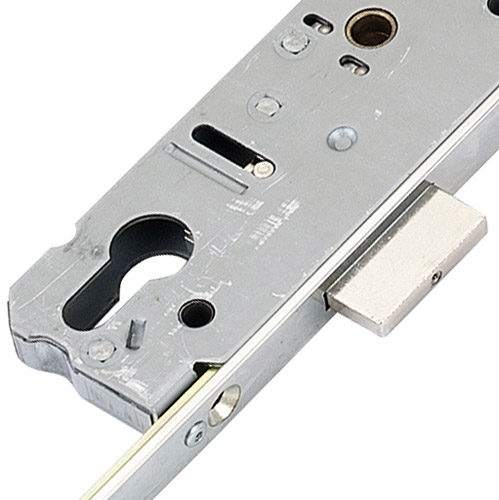

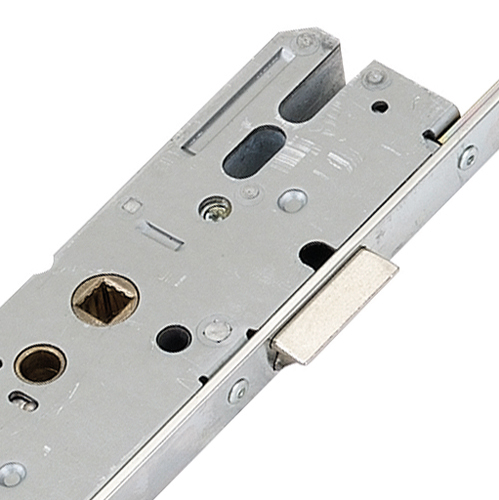

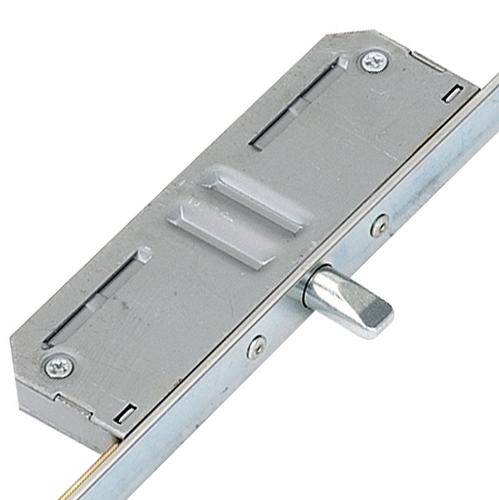

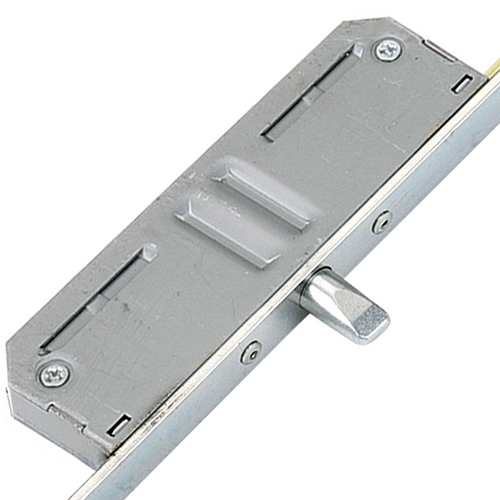

KFV Latch Deadbolt 2 Pin Bolts Key Wind Operated Multipoint Door Lock
£ 135.24
Description
This part is discontinued and is no longer available.
However, part: AS825045 is a potential alternative. This is a tricky lock to replace because of the unusual locking positions and key wind operation. The simplest swap is to a KFV 4 roller key wind lock. New keeps will be required and its worth noting that security will be reduced.
Part: FU855T845 is also a potential alternative. Similar product different brand. Has 2 Rollers so will need 2 x Roller Keeps
If an alternative is required, please contact our tech team for advice.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 45mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Pin Bolts | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Key Wind |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 1490mm |
| Height | 2170mm |
| Top Pin To Spindle | 730mm |
| Bottom Pin To Spindle | 760mm |
