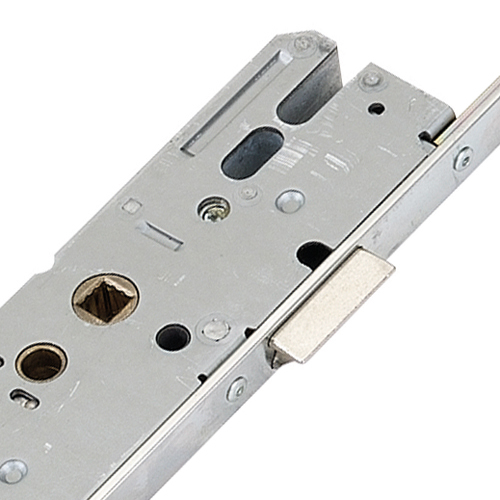

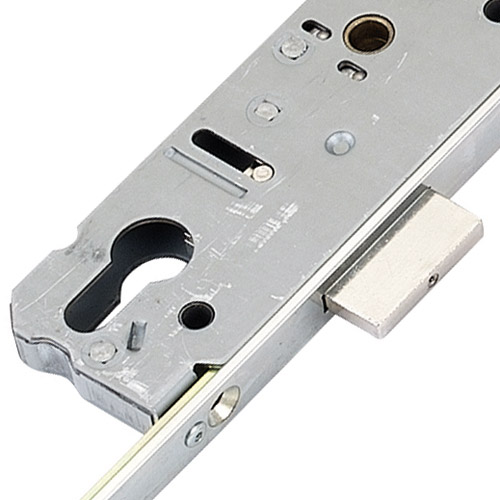

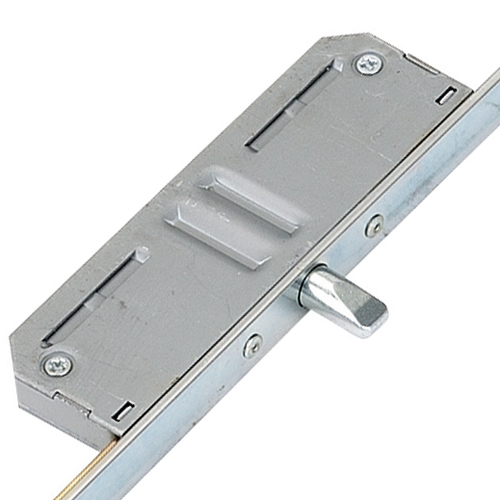

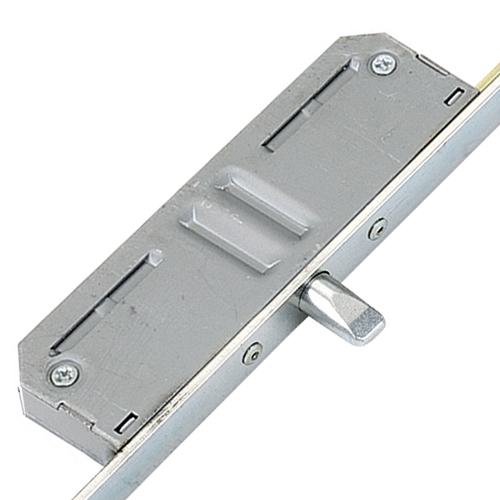

KFV Latch Deadbolt 2 Pin Bolts Lift Lever Multipoint Door Lock
£ 96.43
Description
This part is discontinued and is no longer available.
However, for part AS435025: FU856T825 is a potential alternative. This alternative has 2 additional rollers, so additional keeps are required.
For part AS435030: FU856T130 is a potential alternative. This has 2 additional rollers, so additional keeps are required. Otherwise, the lock is a good match with minimal work required to the door. Part: FU856T830 is also a potential alternative. Similar product different brand. Also has 2 rollers so will need 2 x roller keeps
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 25mm, 30mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Pin Bolts | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 1490mm |
| Height | 2170mm |
| Top Pin To Spindle | 730mm |
| Bottom Pin To Spindle | 760mm |
