Lockmaster Latch Deadbolt 4 Hooks 2 Anti Lift Pins 2 Rollers Lift Lever or Double Spindle Multipoint Door Lock
Price range: £ 79.64 through £ 120.70
Description

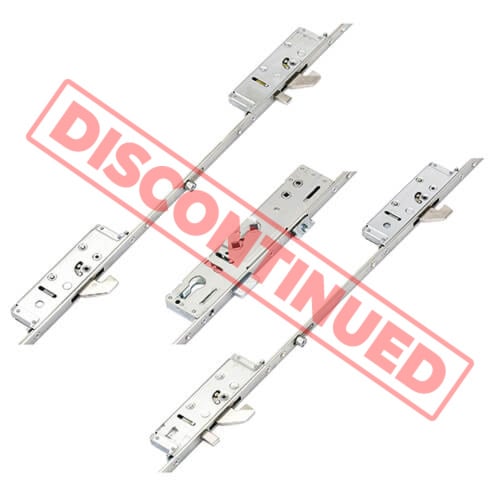

This part is discontinued and is no longer available.

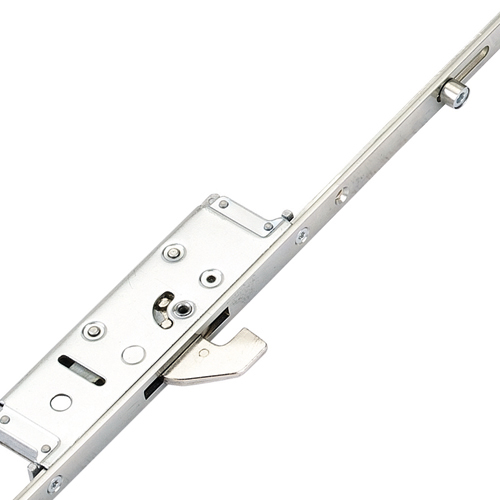

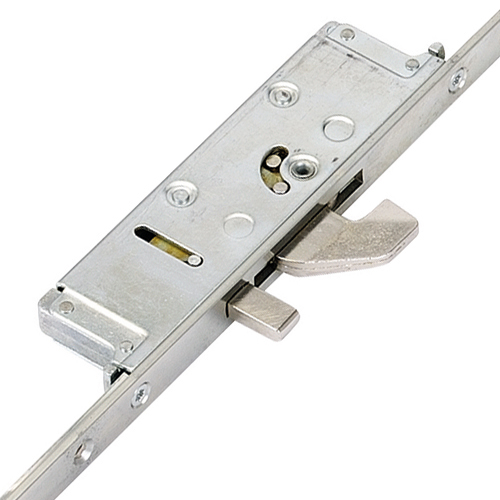

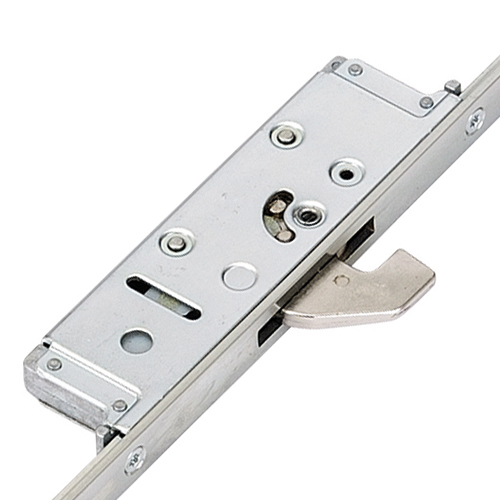

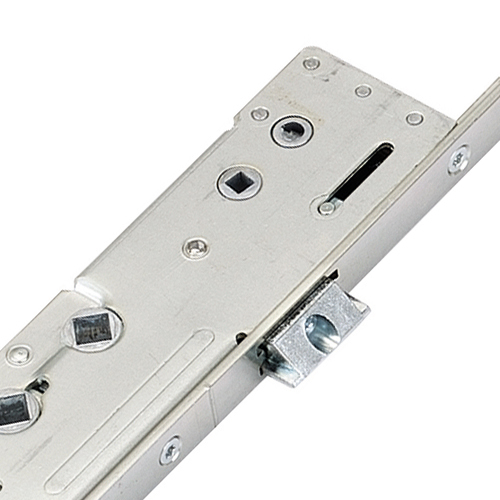

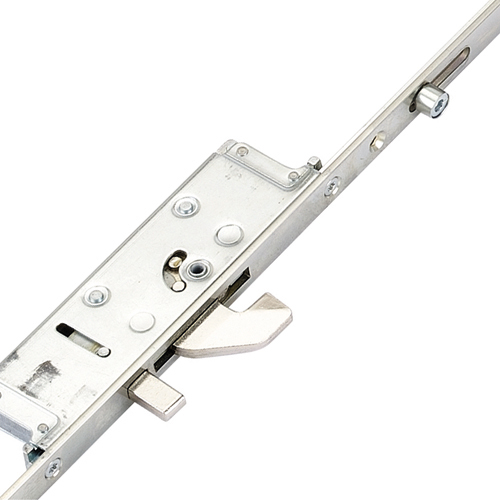

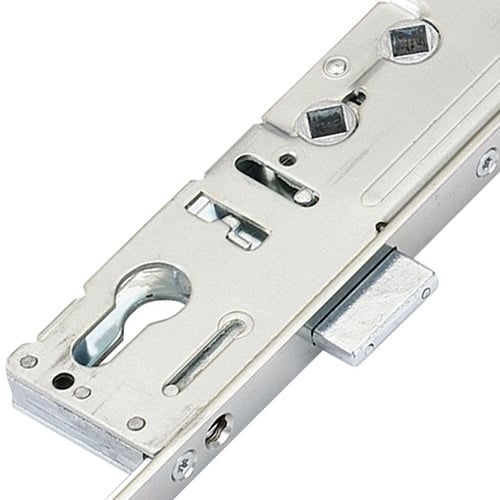

However, for part LM435: LM335 is a potential alternative. The LM435 lock featured 4 hooks, 2 of which had anti lift pins and 2 rollers. We suggest the LM335 as the closest replacement. Its an identical lock, but it only has 2 hooks, with anti lift pins and 2 rollers. The locking points are in the same places.
For part LM435S: LM335S is a potential alternative. The LM435S lock featured 4 hooks, 2 of which had anti lift pins and 2 rollers. We suggest the LM335S as the closest replacement. Its an identical lock, but it only has 2 hooks, with anti lift pins and 2 rollers. The locking points are in the same places.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 35mm |
| Centres PZ | 92mm, 92mm/62mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Hooks | 4 |
| Deadbolts | 1 |
| Latch | 1 |
| Anti Lift Bolts | 2 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever, Double Spindle |
| Shootbolt Attachments | No |
| Spindle | Double 8mm, Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

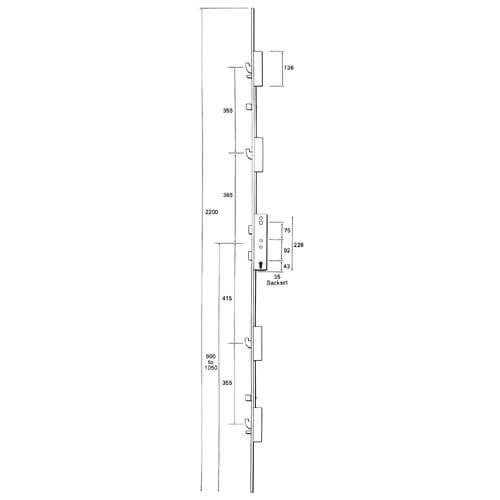

| Distance Between Inner Locking Points | 780mm |
| Distance Between Outer Locking Points | 1490mm |
| Height | 2200mm |
| Top Hook To Spindle | 720mm |
| Bottom Hook To Spindle | 770mm |
| Top Roller To Spindle | 528mm |
| Bottom Roller To Spindle | 647mm |
