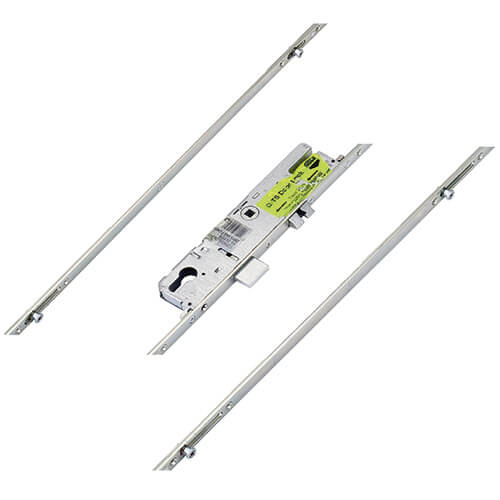

Maco Latch 4 Rollers Lift Lever Multipoint Door Lock – 2 Piece Lock
£ 63.70
Description
This part is discontinued and is no longer available.
However, for part MA1002: MA53461 is a potential alternative. This is the same lock but features a central deadbolt so a new deadbolt keep will need to be fitted. Order code 45590.
For part MA1002: 3MDL3112 and 3MDL3114 are also potential alternatives. Use with 3MDL3112 /3MDL3114.
For part MA1003: 3MDL3114 is a potential alternative. Sell with 3MDL3111. Part: 3MDL3111 is also a potential alternative. Same product but sell with 3MDL3114
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 4 |
| Latch | 1 |
| Main Gearbox | Latch only |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 2 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 735mm |
| Height | 2030mm |
| Top Roller To Spindle | 985mm |
| Bottom Roller To Spindle | 715mm |
