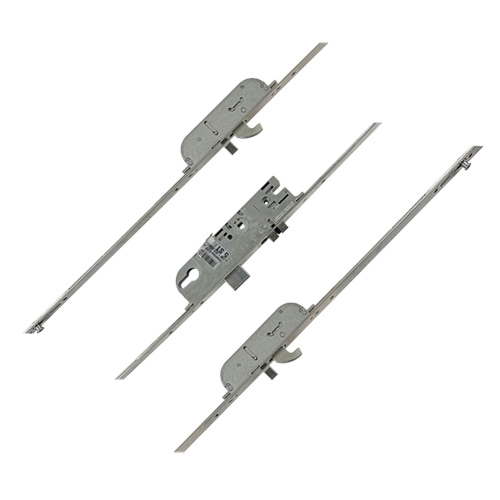

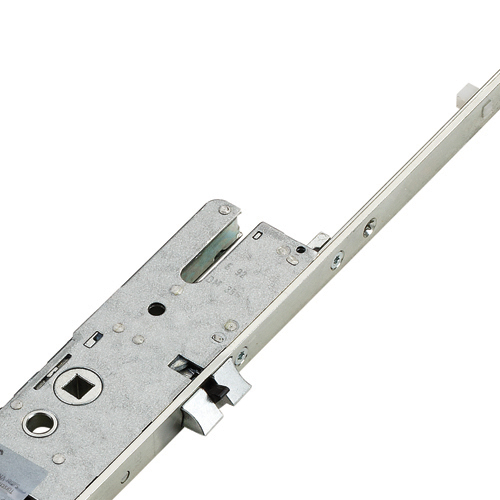

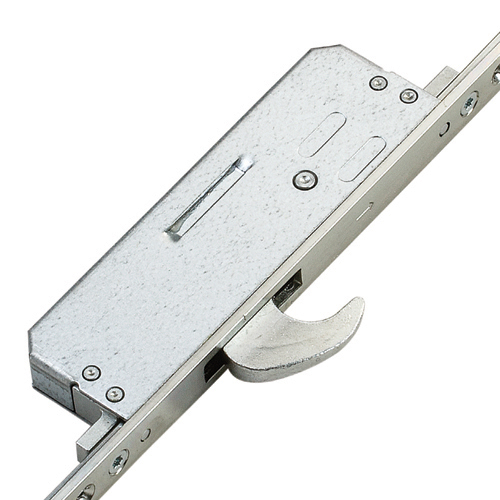

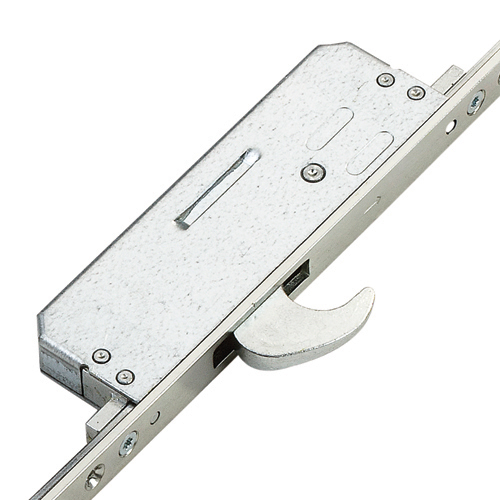

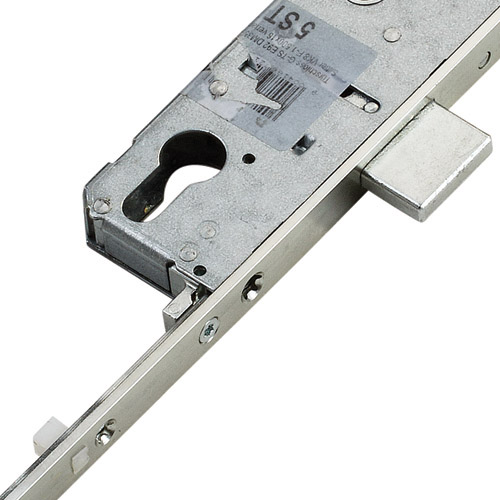

Maco Latch Deadbolt 2 Hooks Multipoint Door Lock – Option 2
Price range: £ 61.07 through £ 63.69
Description
This part is discontinued and is no longer available.
However, for part 233501: AS797035 is a potential alternative. While not a direct match, the proximity of the hooks to the gearbox make this lock the closest alternative. Some adjustment to the keep positions and new shootbolts will be required.
For part 233503: AS737045 is a potential alternative. While not a direct match, the proximity of the hooks to the gearbox make this lock the closest alternative. Some adjustment to the keep positions and new shootbolts will be required.

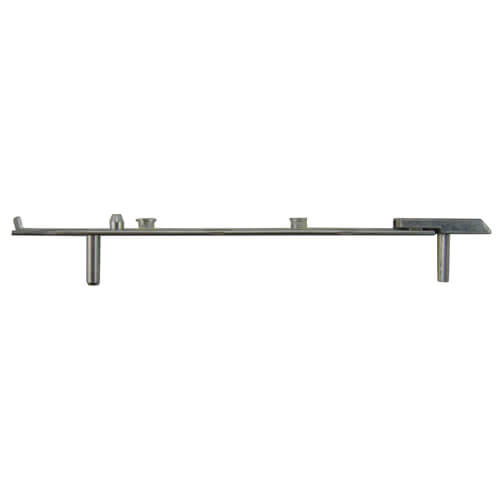

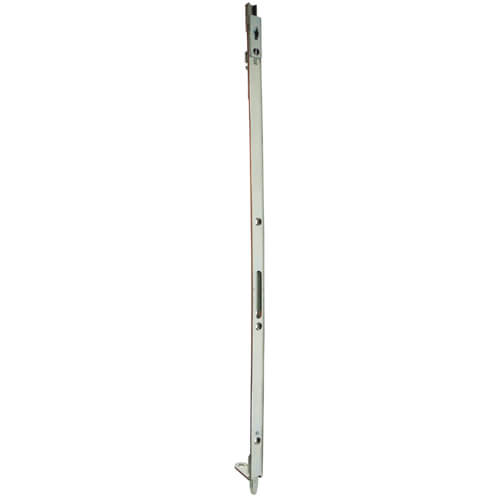

For part 233550: MA53430 is a potential alternative. You will also need new shootbolts.
For part 233550: MGTS282H2R is also potential alternative. You will also need new shootbolts. This lock features the hooks in the same position but new roller keeps will need to be fitted. Order code E11637, This lock is not shootbolt compatible.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 28mm, 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Hooks | 2 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

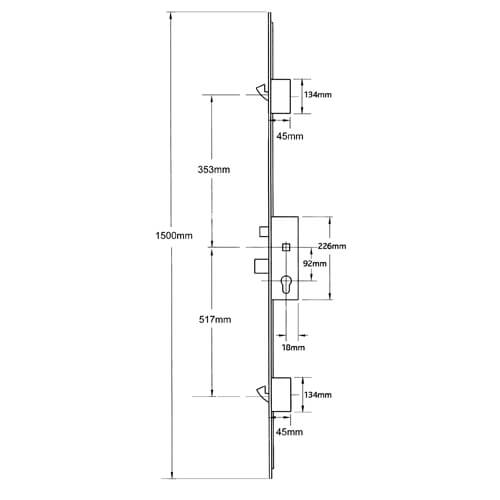

| Distance Between Inner Locking Points | 870mm |
| Height | 1500mm |
| Top Hook To Spindle | 353mm |
| Bottom Hook To Spindle | 517mm |
