Maco Latch Deadbolt and 2 Hooks Multipoint Door Lock
Price range: £ 120.00 through £ 126.00
Description
This part is discontinued and is no longer available.
For part MA53430: 7130113479 is a potential alternative. This alternative is the closest lock with two hooks. The hook positions don’t match perfectly, but they are close. some adjustment will be required to keeps.
For part MA53432: 7135113479 is a potential alternative. This alternative is the closest lock with two hooks. The hook positions don’t match perfectly, but they are close. some adjustment will be required to keeps.
For part MA53433: 7145113479 is a potential alternative. This alternative is the closest lock with two hooks. The hook positions don’t match perfectly, but they are close. some adjustment will be required to keeps.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 28mm, 45mm, 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Hooks | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | Yes |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

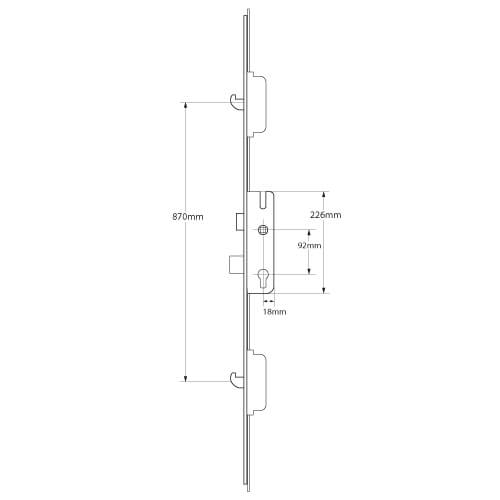

| Distance Between Inner Locking Points | 870mm |
| Height | 1800mm |
| Top Hook To Spindle | 375mm |
| Bottom Hook To Spindle | 495mm |
