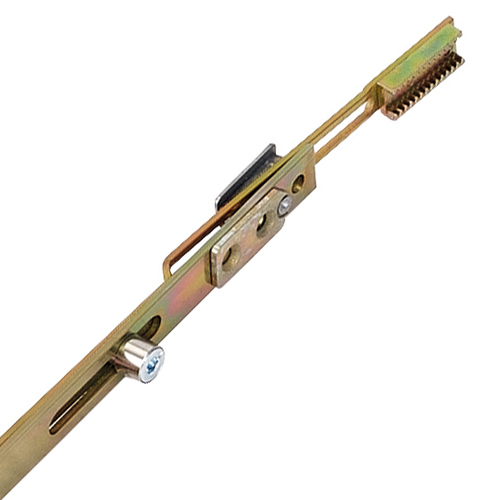

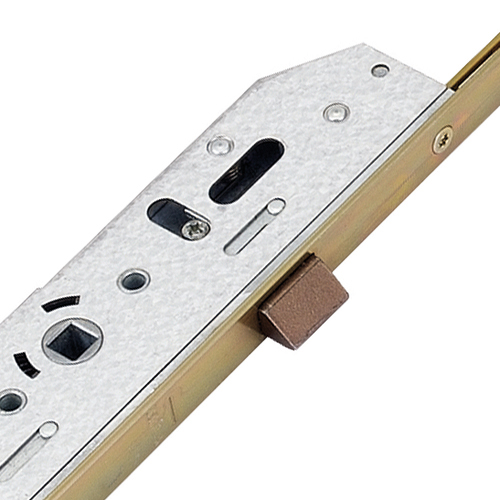

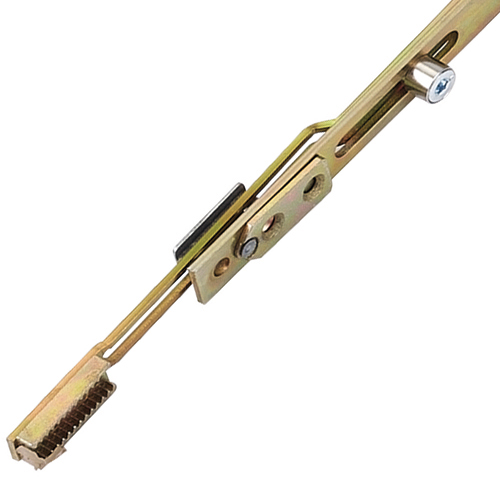

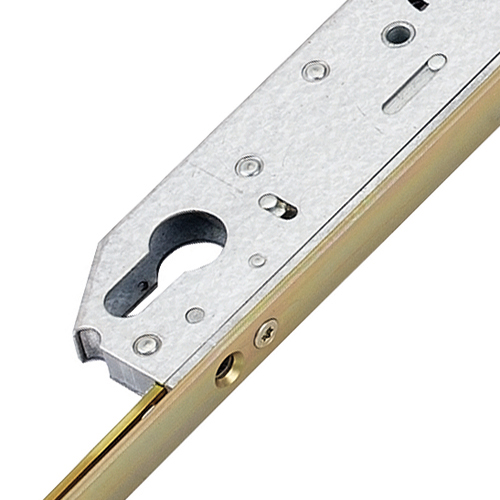

Mila Centre Section Latch 2 Rollers Lift Lever Multipoint Door Lock
Price range: £ 35.21 through £ 45.85
Description

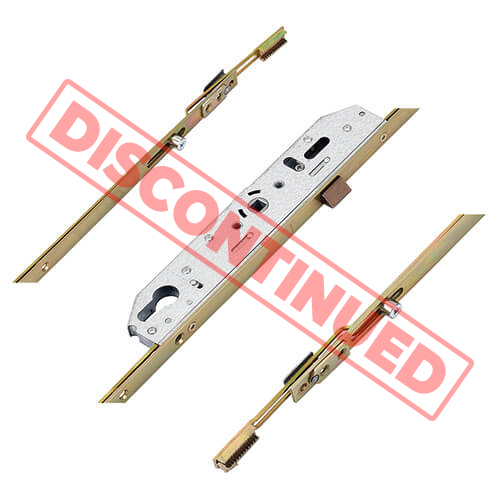

This part is discontinued and is no longer available.
However, for part AS47112: AS4704728 is a potential alternative. This replacement is the full length equivalent to the original, which was a three part lock. Some adjustment to the keep positions may be required.
Part: 50280019AA is also a potential alternative. Needs an additional deadbolt keep.
For part AS47114: AS47047 is a potential alternative. This replacement is the full length equivalent to the original, which was a three part lock. Some adjustment to the keep positions may be required.
Part: MILACASE35LATCH is also potential alternative. Case only.

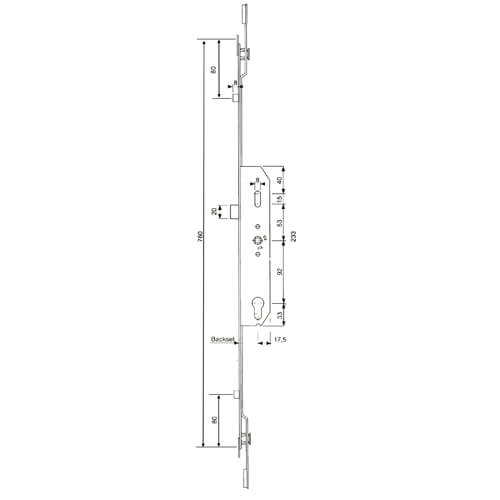

Additional information
| Discontinued | Yes |
|---|---|
| Backset | 28mm, 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Latch | 1 |
| Main Gearbox | Latch only |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 595mm |
| Height | 800mm |
