Mila Latch Deadbolt 2 Hooks 4 Rollers Double Spindle Multipoint Door Lock – 28mm Backset
£ 59.75
Description
This part is discontinued and is no longer available.
However, part: FUSLAVE45 is a potential alternative. This is a very similar product but new shootbolts will be required as the originals will not be compatible.
Operation: Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
Latch Reversal: Not applicable as this passive door lock is unhanded and does not feature a latch.
You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 28mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |

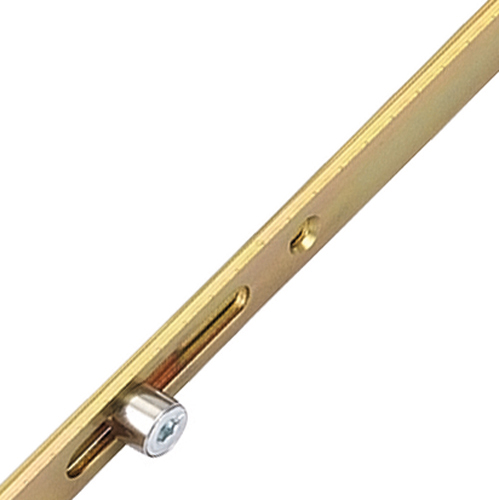

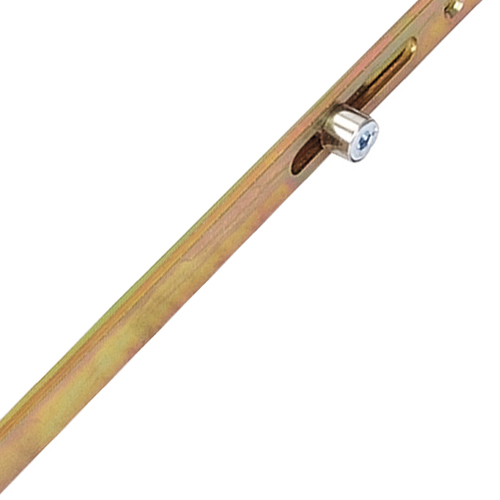

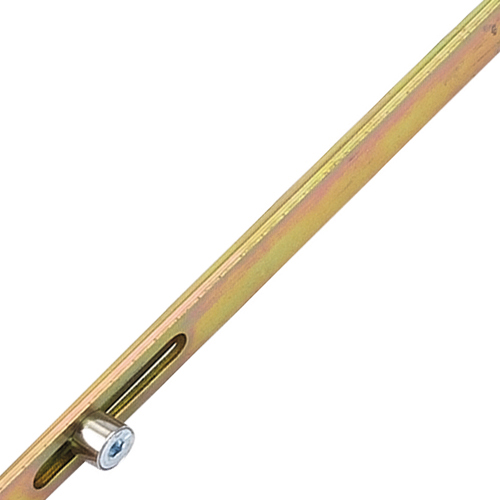

| Rollers | 4 |

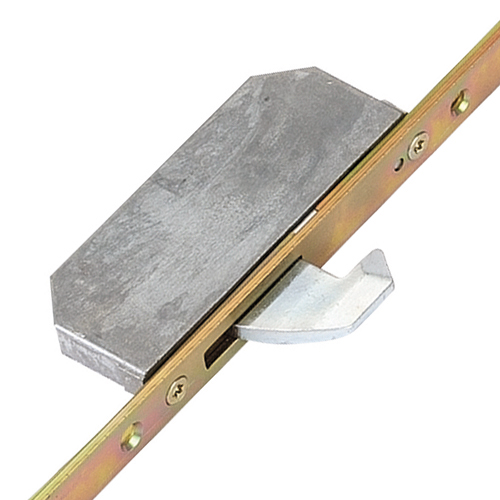

| Hooks | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

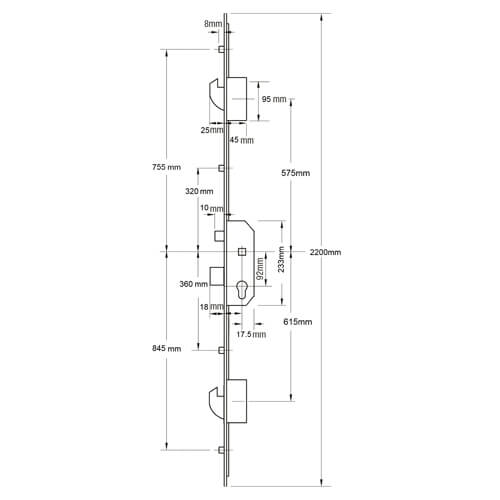

| Distance Between Inner Locking Points | 680mm |
| Distance Between Outer Locking Points | 1600mm |
| Height | 2200mm |
| Top Hook To Spindle | 575mm |
| Bottom Hook To Spindle | 615mm |
| Top Roller To Spindle | 755mm |
| Bottom Roller To Spindle | 845mm |
