Roto H600 Latch Deadbolt 2 Hooks Option 2 Lift Lever Double Spindle Multipoint Door Lock
Price range: £ 59.46 through £ 60.95
Description
This part is discontinued and is no longer available.
However, for part MVD3402H35: MVD3402H351S is a potential alternative. keeps will need adjusting
Part: ROTOCASE35 is also a potential alternative. Case only
art: YADMPRO35TIM is additionally a potential alternative. The Yale Doormaster is a repair product, that is supplied with keeps. It can be used to replace this lock but some adjustment to the existing routing will be required.
For part MVD3402H45: YADMPRO45TIM is a potential alternative. The Yale Doormaster is a repair product, that is supplied with keeps. It can be used to replace this lock but some adjustment to the existing routing will be required.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 45mm, 35mm |
| Centres PZ | 92mm/62mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Hooks | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Double Spindle |
| Shootbolt Attachments | No |
| Spindle | Double 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

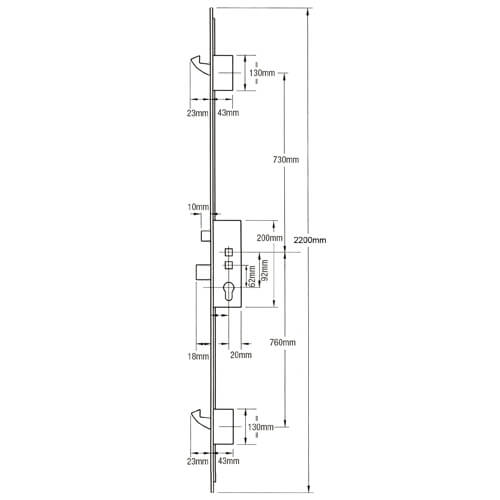

| Distance Between Inner Locking Points | 1490mm |
| Height | 2200mm |
| Top Hook To Spindle | 730mm |
| Bottom Hook To Spindle | 760mm |
