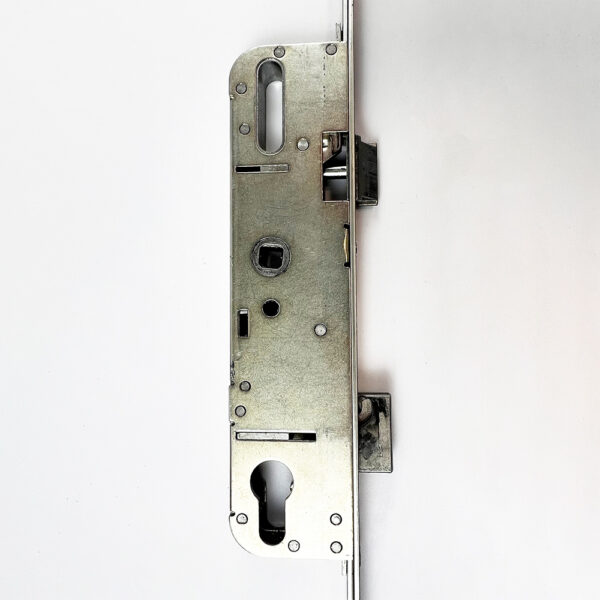

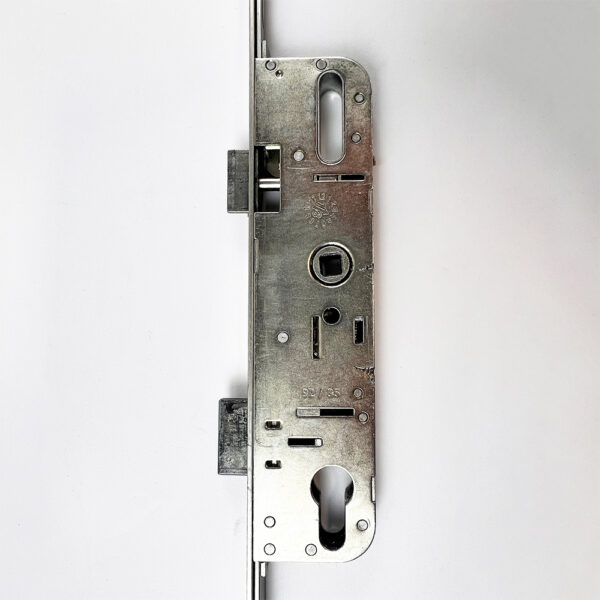

T&T Latch Deadbolt 4 Mushroom Cams Lift lever Multipoint Door Lock
Description

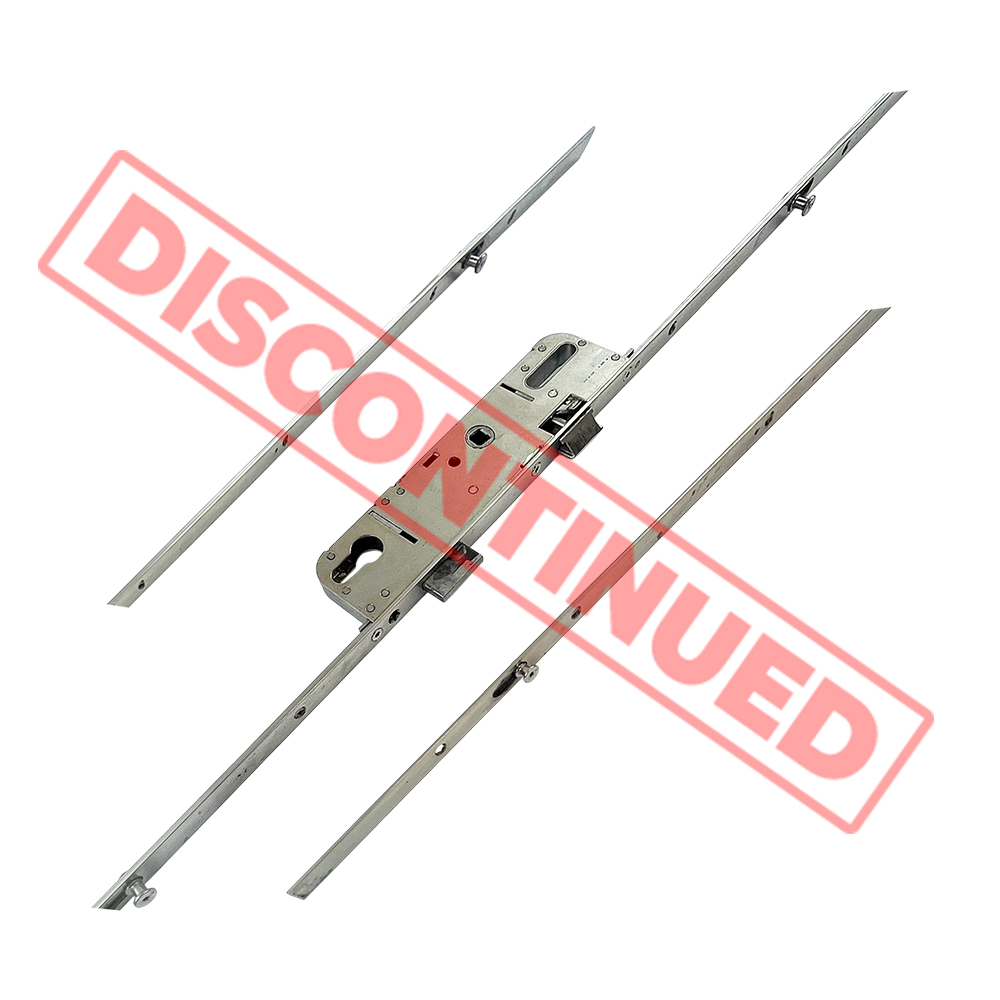

This part is discontinued and is no longer available.
This T&T multipoint door lock features 4 Mushrooms, 1 Deadbolt & 1 Latch. It is commonly found fitted to doors supplied by B&Q or Homebase, which is currently unavailable in the UK.
A suitable alternative is the TSS 4 roller multipoint door lock, this would require the fitting of new keeps
Operation: Lift Lever
To lock the door:
- Lift the handle upward to engage the locking points.
- Lock the locking points and main deadbolt by turning the key. To unlock the door
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm |
| Spindle Size | 8mm |
| Mushrooms | |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Distance Between Inner Locking Points | 580mm |
| Distance Between Outer Locking Points | 1570mm |
| Height | 2000mm |
| Brand | drox brand |
