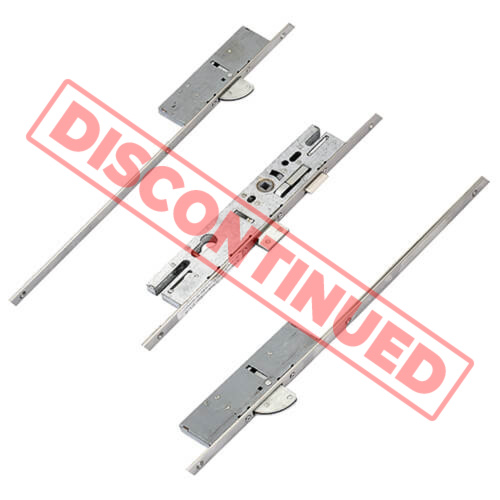

This part is discontinued and is no longer available.

However, part: LM635S is a potential alternative. This is a similar product but outer deadbolt keeps will need to be repositioned.

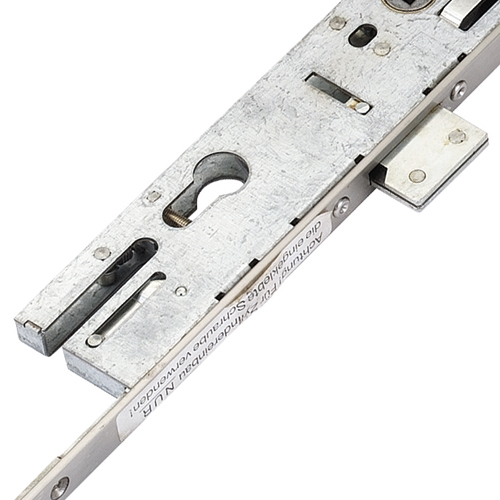

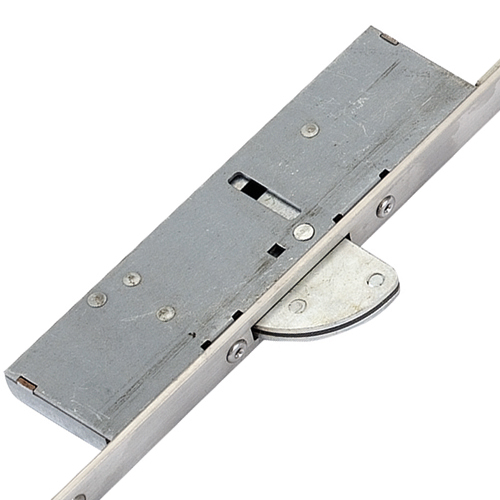

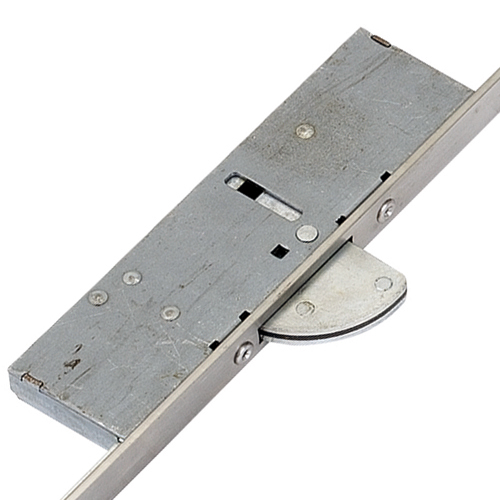

This European made lock features wedgebolts at the top and bottom and a regular deadbolt in the centre gearbox.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

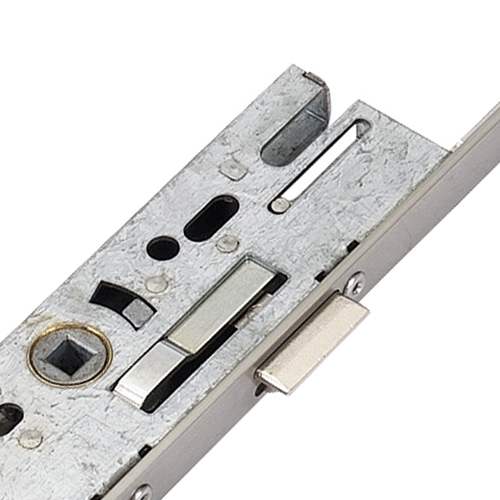

Latch Reversal:Push in the latch and undo screw in back of lock case. Then push latch forward, twist and release to reverse.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
