Description

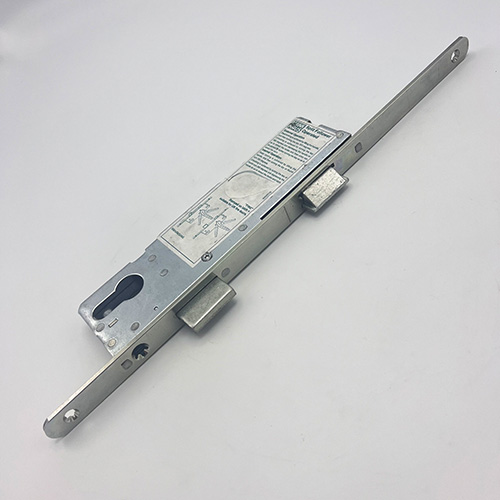

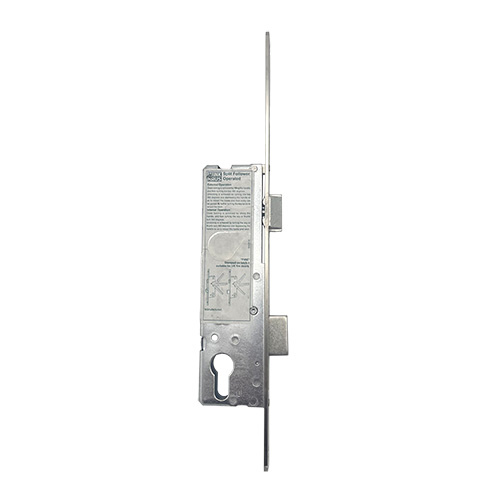

This Winkhaus overnight lock secures properties overnight while the replacement multipoint lock is acquired.

Operation: 160576035mmLift Lever or Split Spindle

Operation: 160772045mmLift Lever

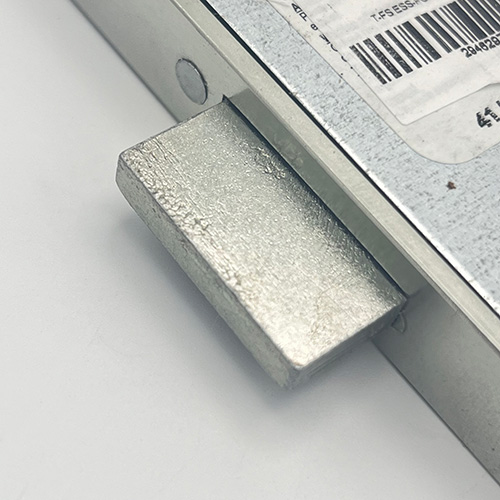

Latch reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and replace the screw.

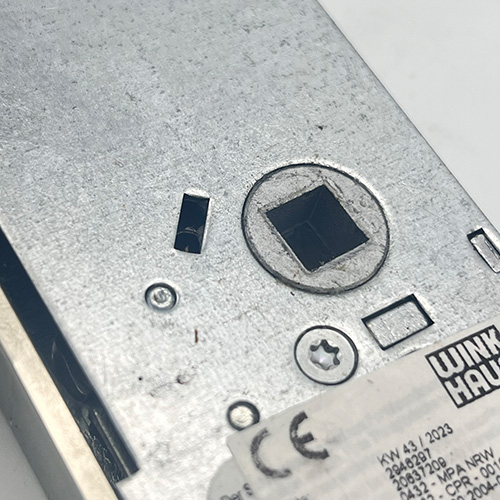

Nightlatch reversal: The small rectangular slot adjacent to the side of the spindle hole contains a black roll pin. Insert a flat-bladed screwdriver and roll the pin to the opposite side to reverse function.

Additional information

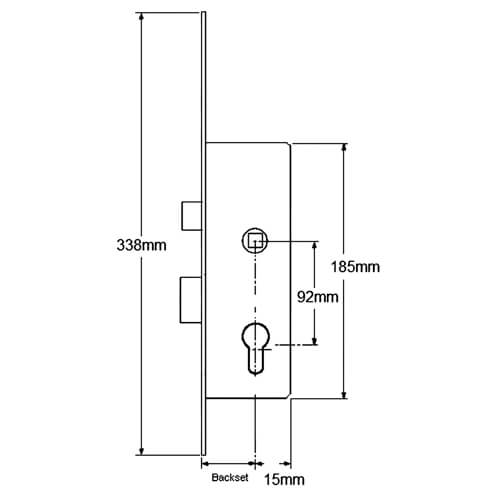

Backset

45mm, 35mm

Centres PZ

92mm

Operation

Lift Lever, Lift Lever Or Split Spindle Nightlatch

Spindle

Single 8mm, Split 8mm

Faceplate Height

338mm

Faceplate Width

16mm
