Winkhaus Palladio Lever Lever UPVC Multipoint Door Handles – 92mm PZ Unsprung 215mm Screw Centres
Price range: £ 59.93 through £ 82.54
Description
These Winkhaus Palladio handles have unsprung 92pz internal and external lever handles. With a backplate size of 260mm x 35mm they are available in 3 finishes.
These handles have 3 fixing screws with the middle fixing 22mm below the lever. The distance between the top and bottom fixing screws is 215mm with the bottom screw positioned 30mm below the euro profile cut-out.
They are supplied as a pair complete with fixings consisting of a spindle and colour co-ordinated screws.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 214mm |
| Backplate Length | 260mm |
| Backplate Width | 35mm |

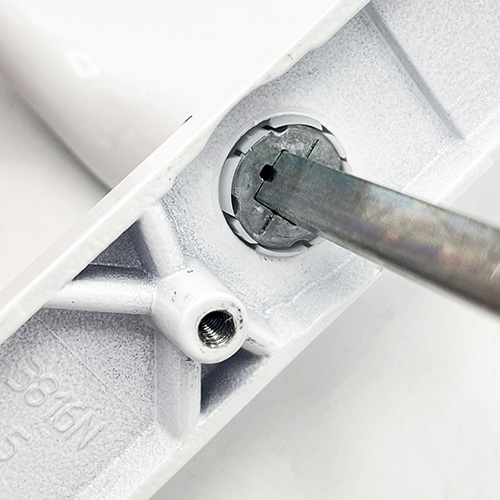

| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Gold, Silver, White |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 30mm |
| Top Screw To Spindle | 70mm |
