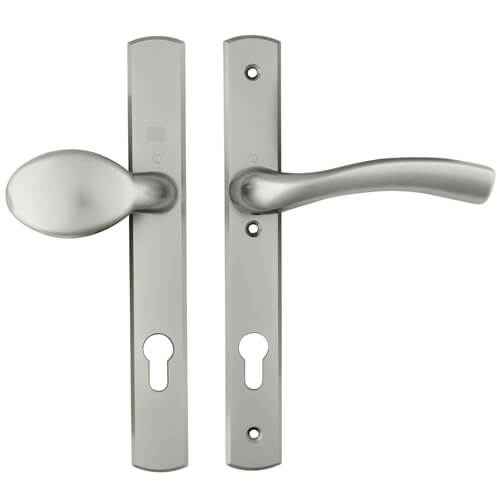

These Winkhaus Palladio handles have an unsprung 92pz internal lever handle and external moveable pad. With a backplate size of 260mm x 35mm they are available in 3 finishes.

These handles have 3 fixing screws with the middle fixing 22mm below the lever. The distance between the top and bottom fixing screws is 215mm with the bottom screw positioned 30mm below the euro profile cut-out.

They are supplied as a pair complete with fixings consisting of 2 spindles and 2 sets of colour co-ordinated screws of differing lengths to suit different door profiles.

Split spindles are supplied separately, use the below ordering codes to suit door thickness.

• 44mm door – 4978054
• 56mm door – 4978055
• 70mm door – 4978056

Palladio lever pad handles are handed, see below handing details.

• For doors hinged on the right when viewed from outside use left hand furniture.
• For doors hinged on the left when viewed from outside use right hand furmiture.
