Yale TS007 2* Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 215mm Screw Centres
£ 78.08
Description
The Yale Platinum door handle range has been successfully tested to TS007:2012 and has achieved BSI’s two star Kitemark accreditation. They also meets the Official Police Preferred Specification requirements of Secured by Design and accredited with BSEN 1906:2010 grade 4. (200,000 cycles, 480 hours neutral salt spray exposure)

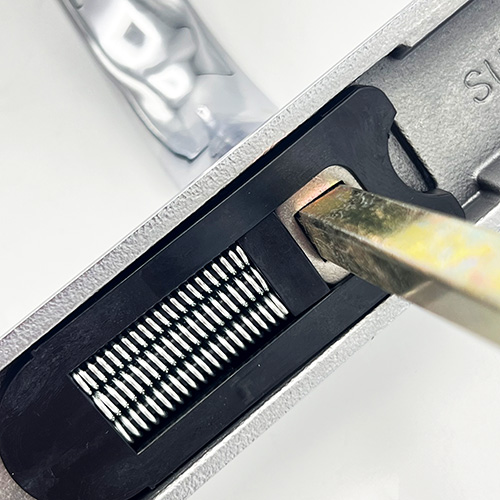

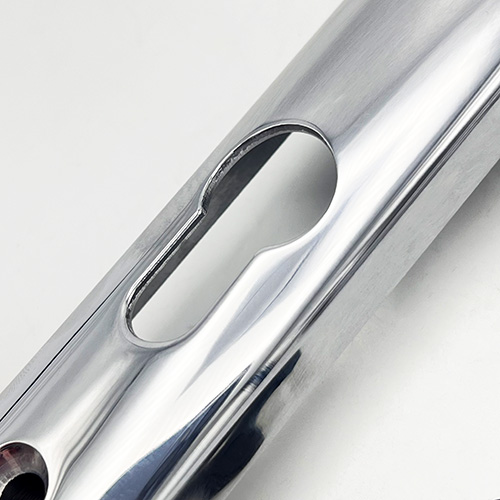

These security handles with buit in cylinder guard have sprung 92pz levers on a backplate 245mm x 34mm.
The distance between the fixing screws is 215mm with the bottom screw positioned 25mm below the euro profile cut-out.
They are supplied as a pair complete with fixings consisting of a spindle and colour co-ordinated screws for PVC and composite doors.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 215mm |
| Backplate Length | 245mm |
| Backplate Width | 34mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | Polished Chrome |
| Packaging | Polybagged |
| Lowest Screw To Base Of Euro | 25mm |
| Top Screw To Spindle | 75mm |
