Clearspan for Smart Visofold 1000 Bi-Fold Doors Bottom Roller
Price range: £ 43.13 through £ 43.49
Description

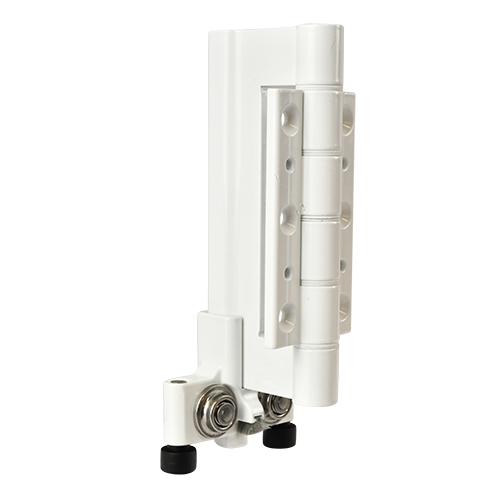

Replacement bottom roller commonly fitted to Smart Visofold 1000 aluminium bi fold doors.
Additional information

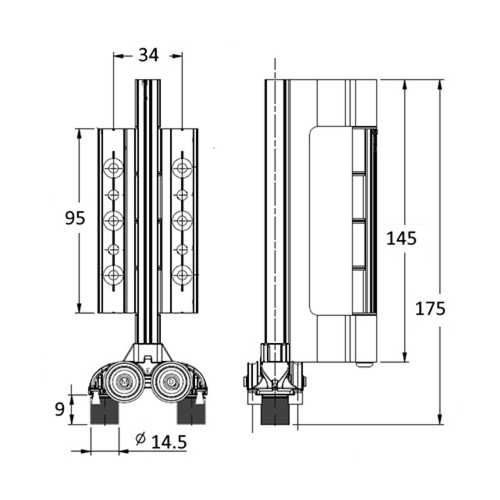

| Type | Bottom Roller Hinge |
|---|---|
| Colour | White, Black |
| Overall Height | 175mm |
| Hinge Height | 95mm |
| Hinge Width When Open | 54mm |
| Diameter of Knuckle | 12mm |
| Hinge Screw Centres | 34mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 40mm |
| Roller Height | 9mm |
| Roller Diameter | 14.5mm |
| Roller Centres | 56mm |
