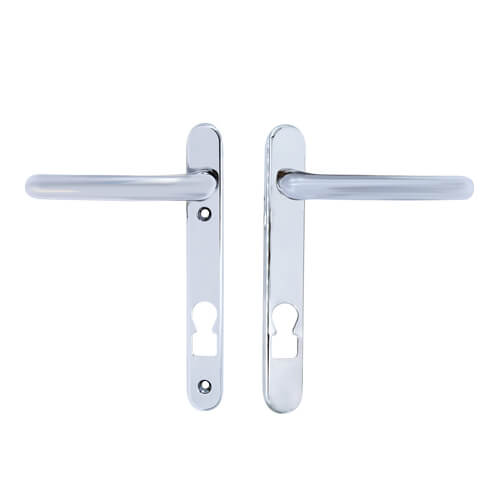

ERA Invincible Surefire Lever Lever UPVC Multipoint Door Handles – 92mm PZ 122mm Screw Centres
Price range: £ 16.32 through £ 30.47
Description
These Fab & Fix handles from the Windsor range suit the Era Surefire multipoint lock which features the unique Invincible cylinder.

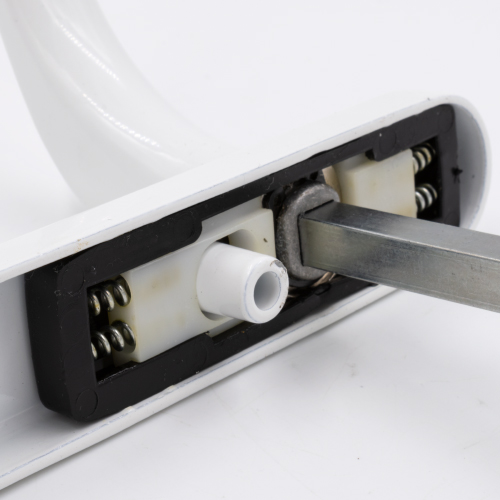

They have sprung 92pz internal & external levers and with a backplate of 205mm x 28mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

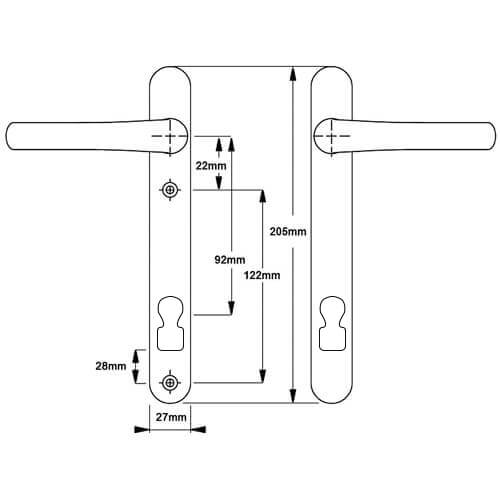

The distance between the fixing screws is 122mm with the bottom screw positioned 20mm below the euro profile cut-out.

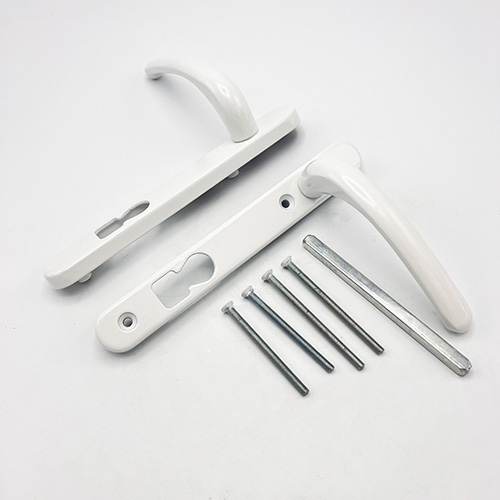

They are supplied as a pair complete with fixings consisting of spindle & 2 colour co-ordinated screws.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 122mm |
| Backplate Length | 205mm |
| Backplate Width | 27mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | White, Chrome, Hardex Gold |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 28mm |
| Top Screw To Spindle | 22mm |
