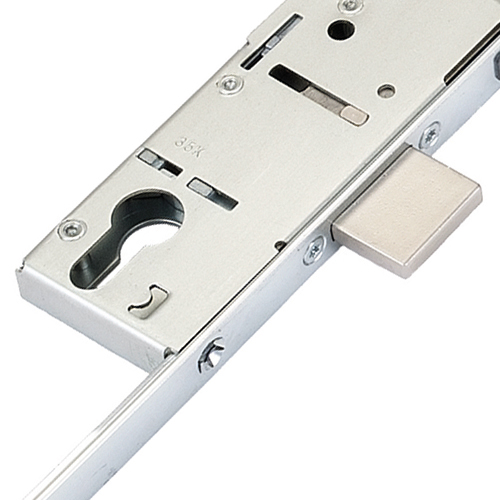

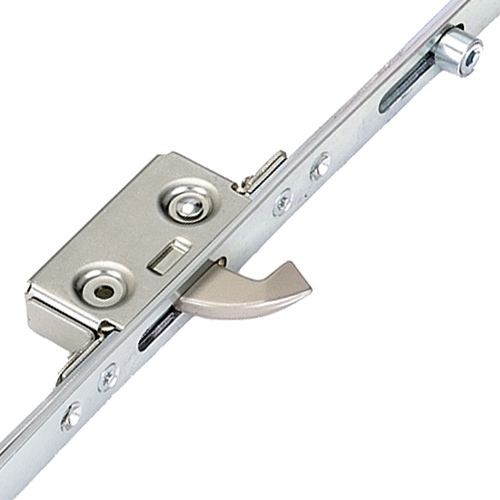

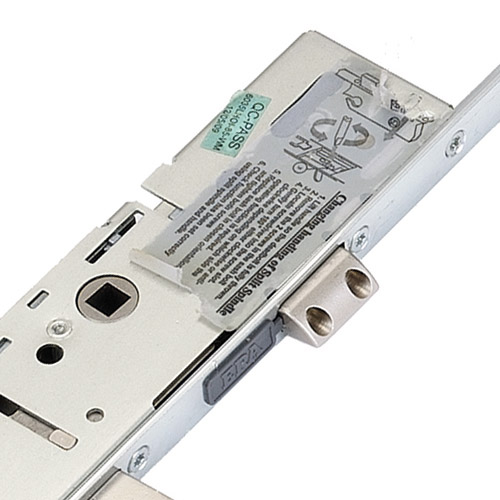

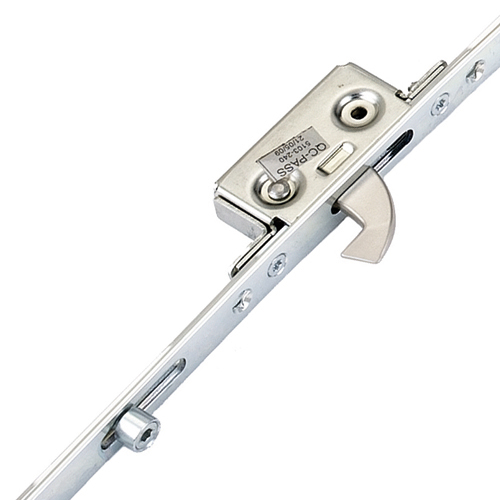

ERA Latch Deadbolt 2 Hooks 2 Rollers Split Spindle Multipoint Door Lock – Option 1
£ 127.70
Description
This part is discontinued and is no longer available.
However, part: ERA2BH2R28 is a potential alternative. This lock is an exact replacement but it features the larger hooks, rather than smaller ones. As a result, some work may be required to enlarge the existing door routing.
Additional information
| Discontinued | Yes |
|---|---|
| Backset | 28mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Hooks | 2 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Split Spindle |
| Shootbolt Attachments | Yes |
| Spindle | Split 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

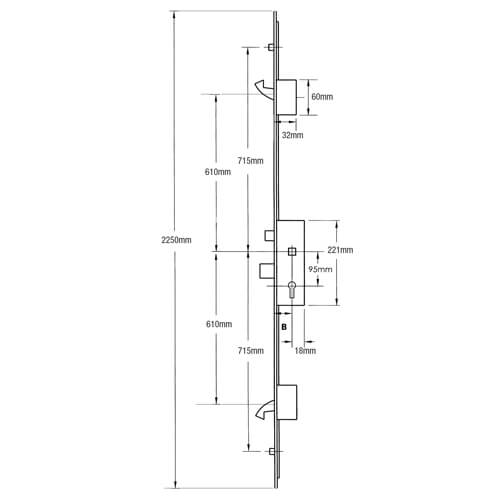

| Distance Between Inner Locking Points | 1220mm |
| Distance Between Outer Locking Points | 1430mm |
| Height | 2250mm |
| Top Hook To Spindle | 610mm |
| Bottom Hook To Spindle | 610mm |
| Top Roller To Spindle | 715mm |
| Bottom Roller To Spindle | 715mm |
