ERA Latch Deadbolt 2 Rollers 2 Mushroom Split Spindle Multipoint Door Lock – Option 2 – 28mm Backset
£ 48.14
Description
This part is discontinued and is no longer available.
However, part: 51280019AA is a potential alternative. Same product but the locking points are in a different position.
Part: ERACASE30 is also potential alternative. There is no direct replacement for this ERA lock, if a replacement gearbox isn’t suitable (part ERACASE30) then we recommend a V-MPL4RKIT repair lock.

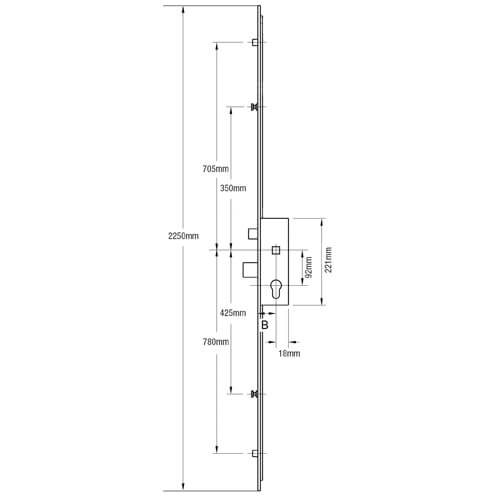

Additional information
| Discontinued | Yes |
|---|---|
| Backset | 28mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Mushrooms | |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Split Spindle |
| Shootbolt Attachments | Yes |
| Spindle | Split 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 775mm |
| Distance Between Outer Locking Points | 1485mm |
| Height | 2250mm |
| Top Roller To Spindle | 705mm |
| Bottom Roller To Spindle | 780mm |
| Top Mushroom To Spindle | 350mm |
| Bottom Mushroom To Spindle | 425mm |
