Fab & Fix Balmoral Lever Moveable Pad UPVC Multipoint Door Handles – 92mm/62mm PZ Sprung 212mm Screw Centres
Price range: £ 21.14 through £ 40.97
Description

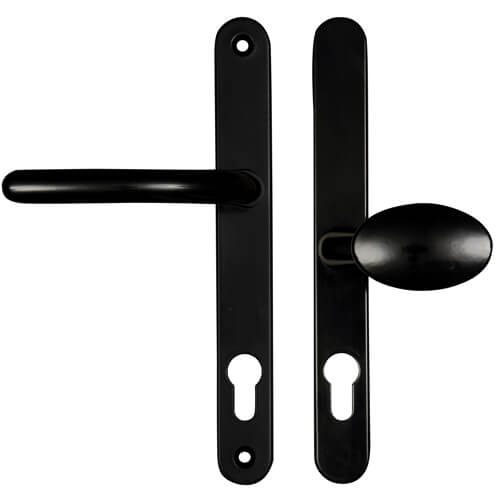

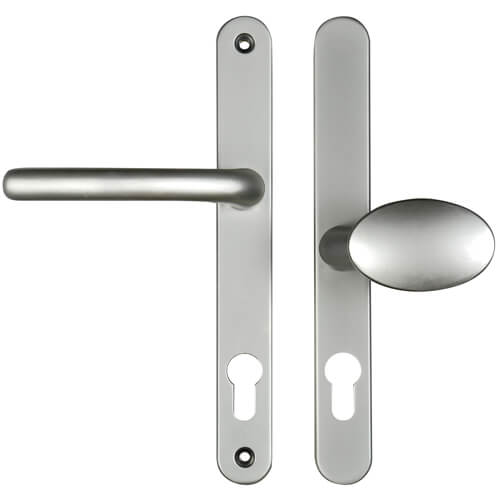

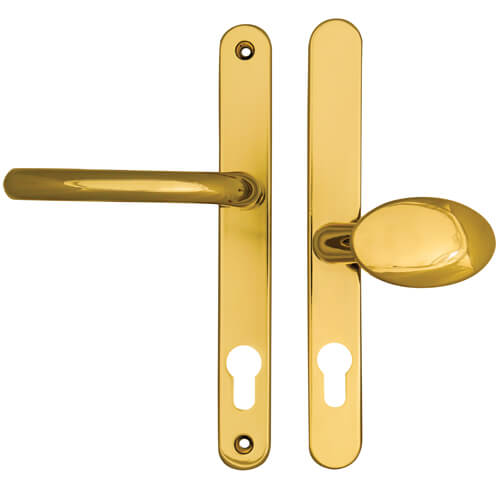

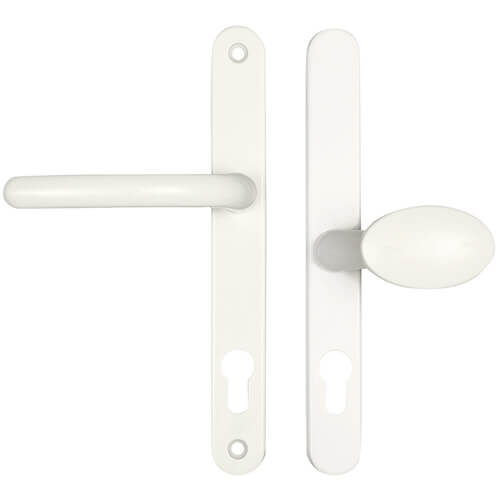

These Fab & Fix handles from the Balmoral range have a sprung 92pz internal lever handle and a 62pz external moveable pad. With a backplate of 242mm x 32mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

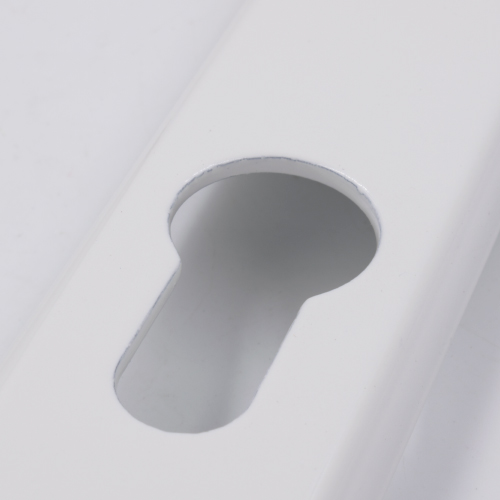

The distance between the fixing screws is 212mm with the bottom screw positioned 20mm below the euro profile cut-out.

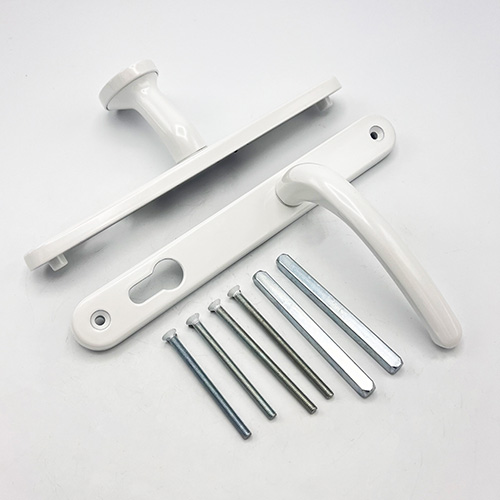

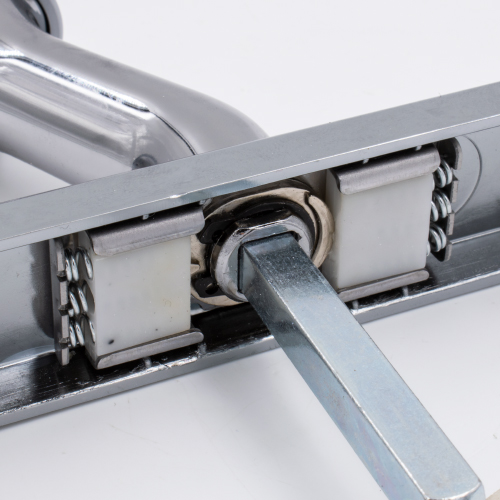

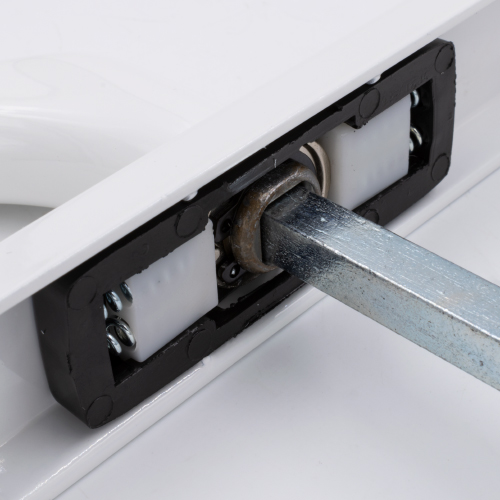

They are supplied as a pair complete with fixings consisting of 2 spindles, 2 colour co-ordinated screws and spring cassettes.
.
Additional information

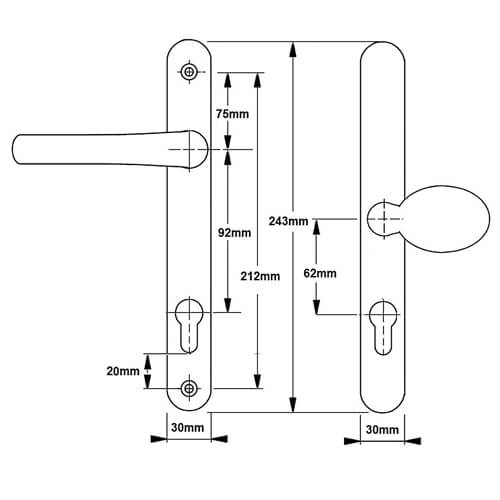

| Centres PZ | 92mm/62mm |
|---|---|
| Screw Centres | 212mm |
| Backplate Length | 243mm |
| Backplate Width | 30mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | White, Black, Brass, Chrome, Silver |
| Lowest Screw To Base Of Euro | 20mm |
| Top Screw To Spindle | 75mm |
