Fab & Fix Blenheim Lever Moveable Pad UPVC Multipoint Door Handles – 92mm/62mm PZ Sprung 240mm Screw Centres
Price range: £ 22.70 through £ 54.31
Description

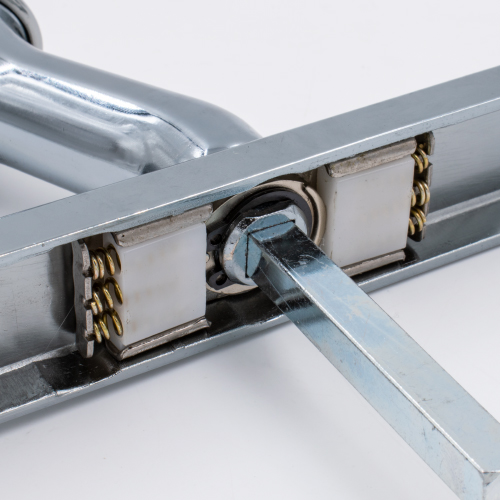

These Fab & Fix handles from the Blenheim range have a sprung 92pz internal lever handle and a 62pz external moveable pad. With a backplate of 270mm x 30mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.
The distance between the fixing screws is 240mm with the bottom screw positioned 17mm below the euro profile cut-out.
They are supplied as a pair complete with fixings consisting of 2 spindles, 2 colour co-ordinated screws and spring cassettes.
Additional information
| Centres PZ | 92mm/62mm |
|---|---|
| Screw Centres | 240mm |
| Backplate Length | 268mm |
| Backplate Width | 32mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | Black, Brass, Chrome, Silver, White |
| Lowest Screw To Base Of Euro | 17mm |
| Top Screw To Spindle | 105mm Inside 135mm Outside |
