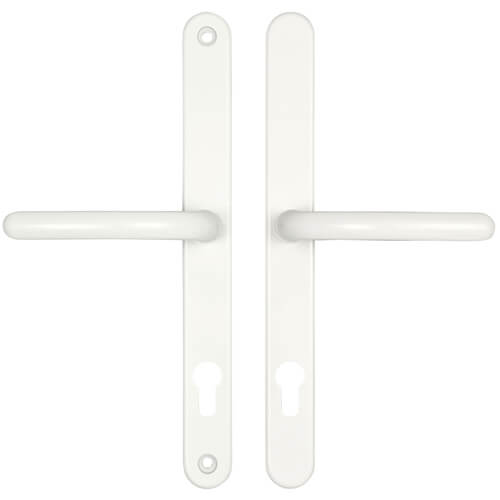

Fab & Fix Universal Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 265mm Screw Centres
Price range: £ 35.94 through £ 57.82
Description

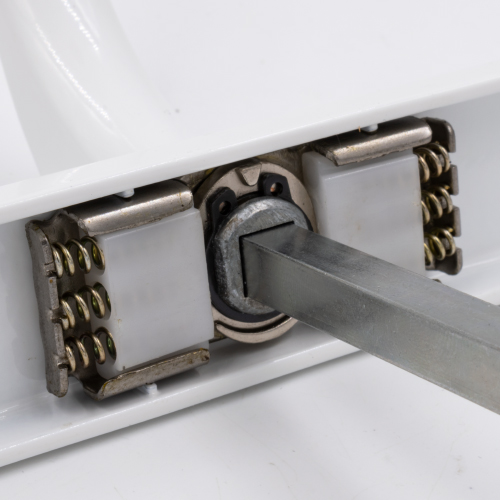

These extra large universal Fab & Fix handles have sprung 92pz internal & external levers. With a backplate of 296mm x 32mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

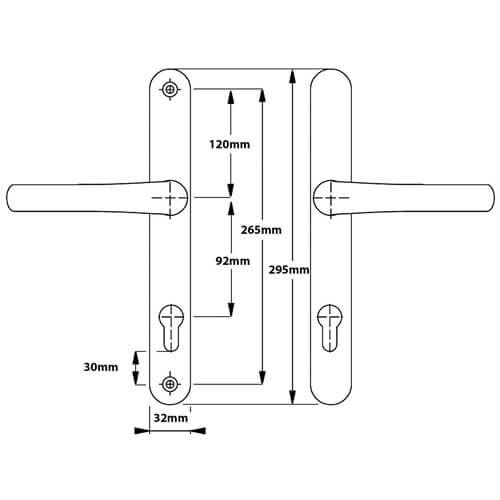

The distance between the fixing screws is 265mm with the bottom screw positioned 30mm below the euro profile cut-out.

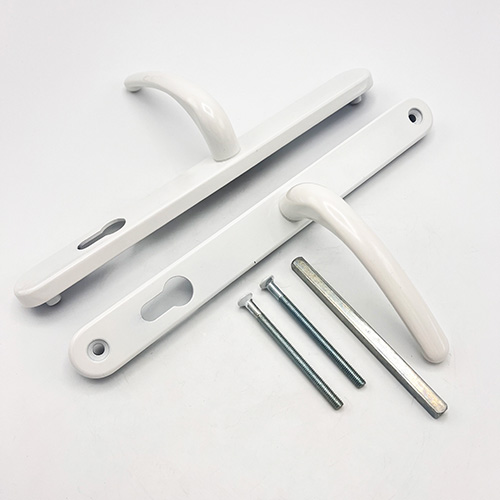

They are supplied as a pair complete with fixings consisting of spindle & 2 colour co-ordinated screws.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 265mm |
| Backplate Length | 295mm |
| Backplate Width | 32mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | Brass, Silver, White |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 30mm |
| Top Screw To Spindle | 120mm |
