GU Europa Latch 3 Deadbolts Lift Lever Multipoint Door Lock – Option 1
Price range: £ 60.77 through £ 79.61
Description
This version of the 2 deadbolt lock has 1228mm between the deadbolts.
A wide version with 1600mm between the deadbolts is also available.
Backset: 28mm, 30mm, 35mm and 45mm.
Centres: 92mm.
Operation: Lift lever.
Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.
Additional information
| Discontinued | No |
|---|---|
| Backset | 35mm, 28mm, 45mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Deadbolts | 3 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | Yes |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

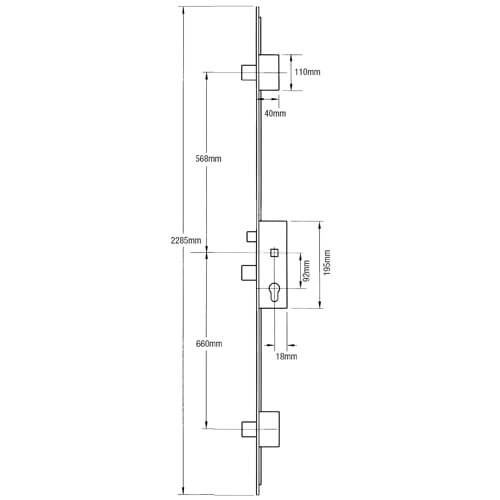

| Distance Between Inner Locking Points | 1228mm |
| Height | 2285mm |
| Top Deadbolt To Spindle | 568mm |
| Bottom Deadbolt To Spindle | 660mm |
