Hoppe Asgard Lever Moveable Pad UPVC Multipoint Door Handles – 92mm/70mm PZ Unsprung 205mm Screw Centres
Price range: £ 22.64 through £ 36.95
Description

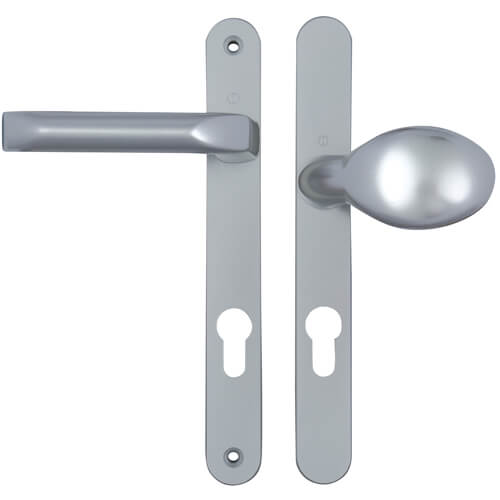

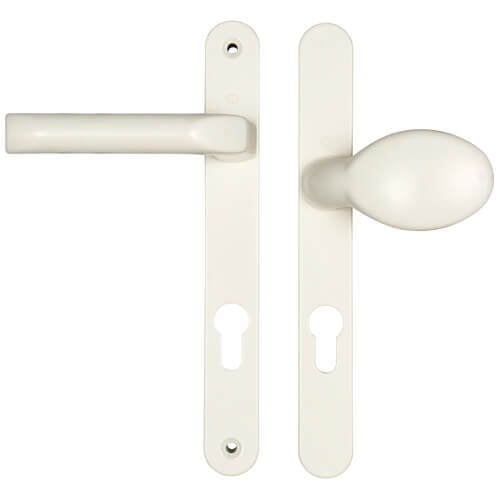

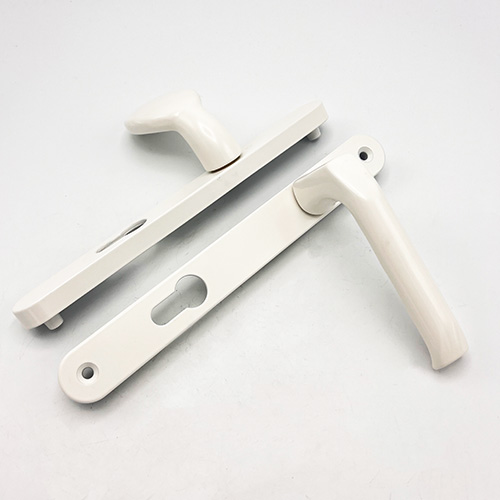

These Hoppe Asgard handles have an unsprung 92pz internal lever handle and a 70pz external moveable pad. With a backplate size of 230mm x 28mm they are available in white and gold finishes.
The distance between the fixing screws is 205mm with the bottom screw positioned 39mm below the euro profile cut-out.
They are supplied as a pair without spindles & fixings. See below ordering options for spindle & screw packs. Â
- V-FIXKITW – 1 x spindle & 2 x white fixing screws
- V-FIXKITG – 1 x spindle & 2 x gold fixing screws
- TSSSPIN8 – 1 x spindle only
Additional information
| Centres PZ | 92mm/70mm |
|---|---|
| Screw Centres | 205mm |
| Backplate Length | 230mm |
| Backplate Width | 28mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | White, Gold, Silver |
| Lowest Screw To Base Of Euro | 39mm |
| Top Screw To Spindle | 48mm |
