Hoppe Atlanta Lever Moveable Pad UPVC Multipoint Door Handles – 92mm/62mm PZ Sprung 215mm Screw Centres
Price range: £ 25.24 through £ 32.16
Description

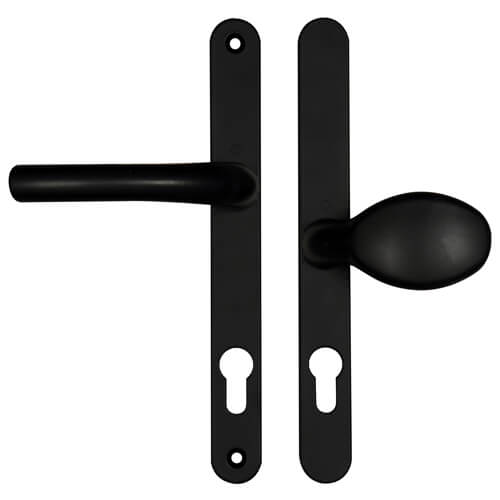

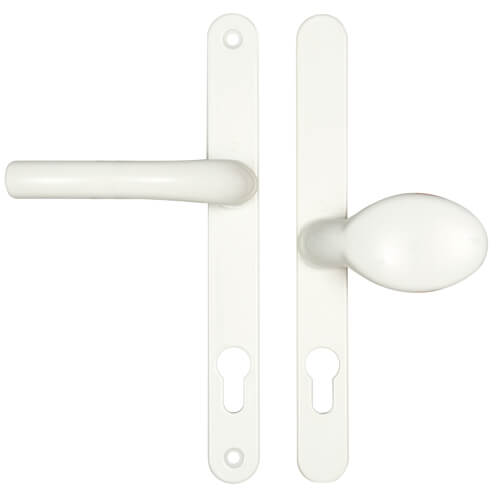

These Hoppe handles from the Atlanta range have a sprung 92pz internal lever handle and a 62pz external moveable pad. With a backplate size of 240mm x 26mm they are available in various finishes.

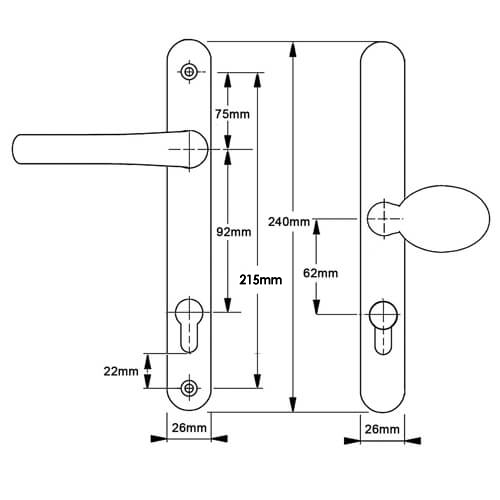

The distance between the fixing screws is 215mm with the bottom screw positioned 22mm below the euro profile cut-out.

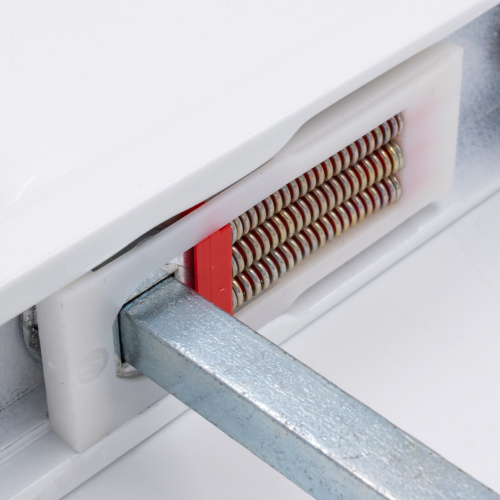

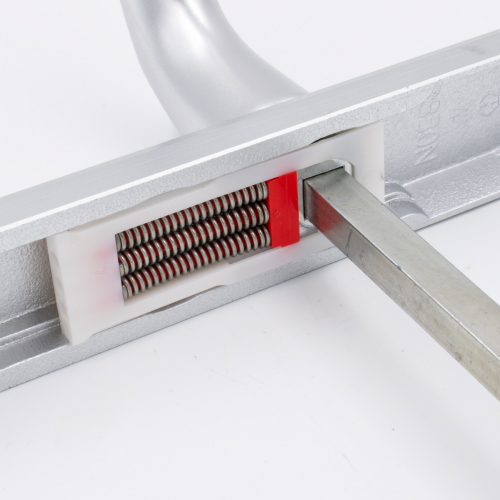

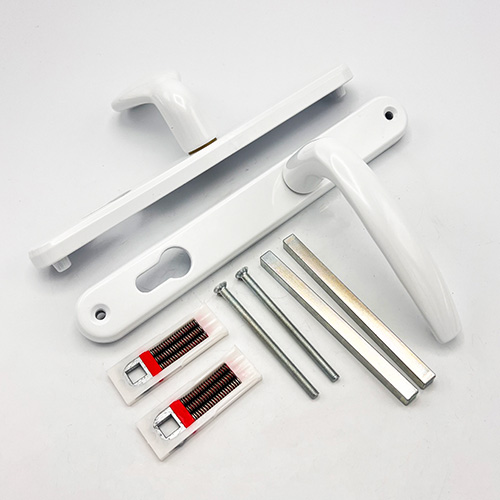

They are supplied as a pair complete with fixings consisting of 2 spindles, 2 colour co-ordinated screws and 2 spring cassettes.
Additional information
| Centres PZ | 92mm/62mm |
|---|---|
| Screw Centres | 215mm |
| Backplate Length | 241mm |
| Backplate Width | 26mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | Black, Gold, Silver, White |
| Lowest Screw To Base Of Euro | 24mm |
| Top Screw To Spindle | 75mm |
