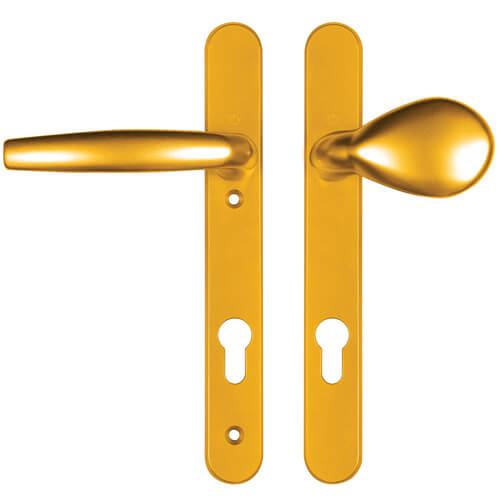

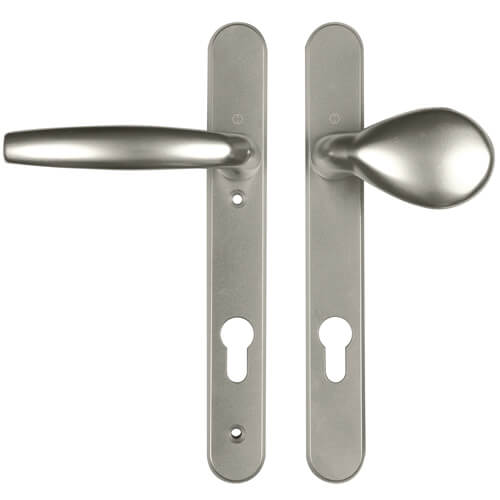

Hoppe Atlanta Lever Moveable Pad UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres
Price range: £ 22.43 through £ 23.93
Description

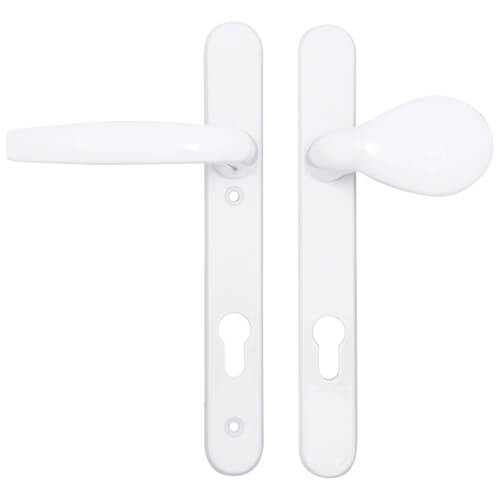

These Hoppe handles from the Atlanta range have a sprung 92pz internal lever handle and external moveable pad. With a backplate size of 240mm x 30mm they are available in various finishes.

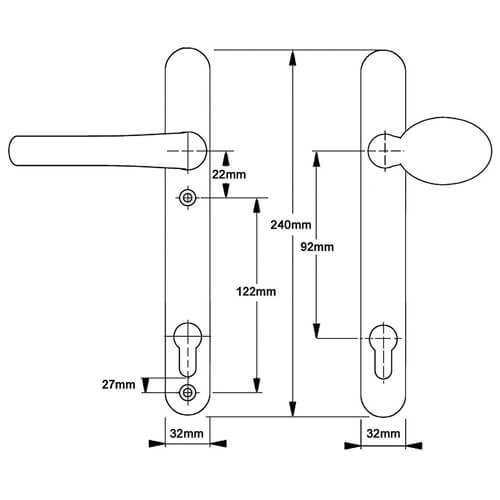

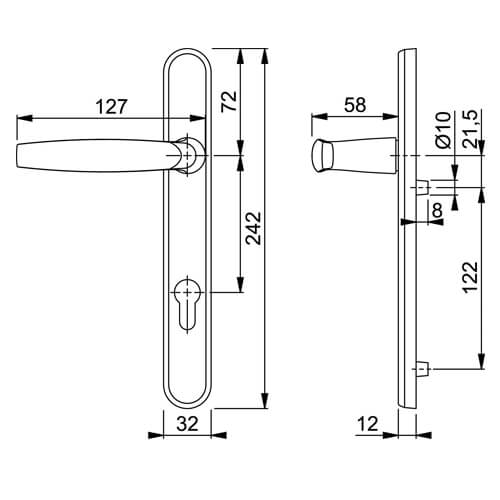

The distance between the fixing screws is 122mm with the bottom screw positioned 27mm below the euro profile cut-out.

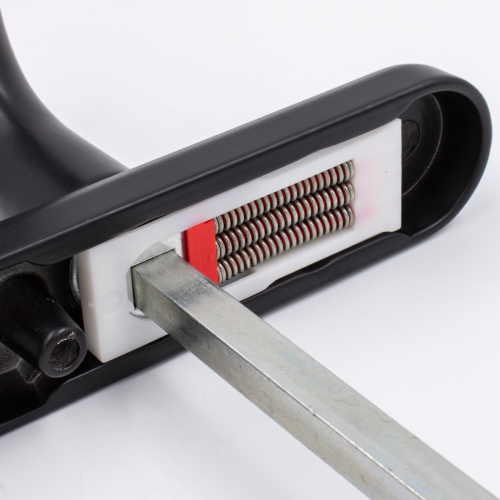

They are supplied as a pair complete with fixings consisting of a spindle, 2 colour co-ordinated screws and 2 spring cassettes.
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 122mm |
| Backplate Length | 242mm |
| Backplate Width | 32mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Black, Gold, Silver, White |
| Lowest Screw To Base Of Euro | 27mm |
| Top Screw To Spindle | 22mm |
