Hoppe London Lever Lever UPVC Multipoint Door Handles – 48mm PZ Sprung 215mm Screw Centres
Price range: £ 31.28 through £ 33.29
Description
These Hoppe handles from the London range have sprung 48pz internal & external levers. With a backplate size of 235mm x 28mm they are available in various finishes and are commonly used on aluminium doors. Please note they are not suitable to be used with Union 3 point locking systems such as L22180, L22174 & L22172.
The distance between the fixing screws is 215mm with the bottom screw positioned 50mm below the euro profile cut-out.

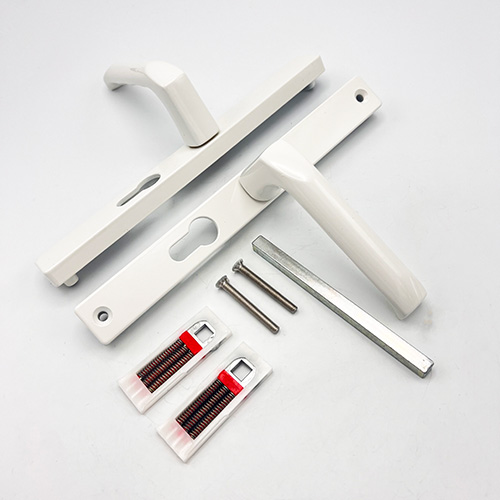

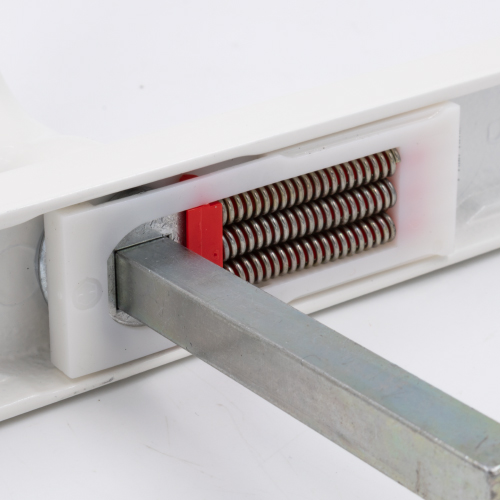

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 47-56mm.
Additional information
| Centres PZ | 48mm |
|---|---|
| Screw Centres | 215mm |
| Backplate Length | 235mm |
| Backplate Width | 28mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Sprung |
| Colour | White, Black, Gold, Silver |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 50mm |
| Top Screw To Spindle | 95mm |
