Hoppe Tokyo Lever Lever UPVC Multipoint Door Handles – 92mm PZ Unsprung 203mm Screw Centres
Price range: £ 32.08 through £ 34.49
Description

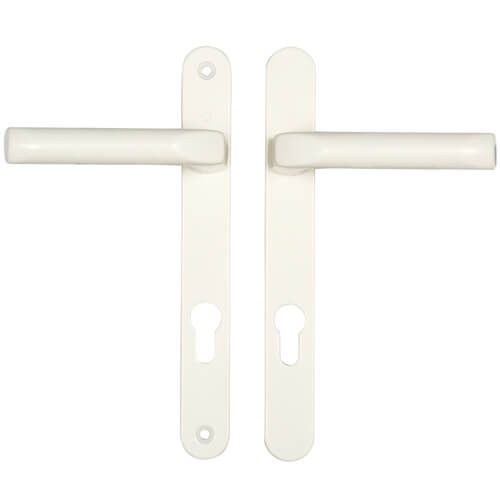

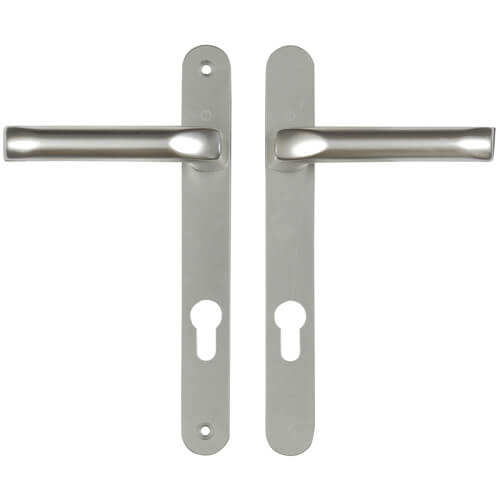

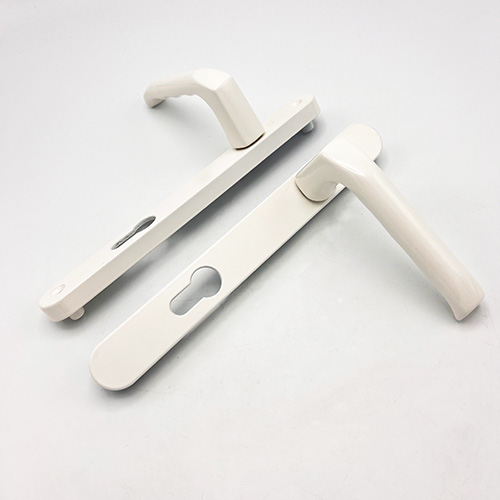

These Hoppe Tokyo Asgard handles have unsprung 92pz internal & external levers. With a backplate size of 230mm x 28mm, they are available in various finishes.

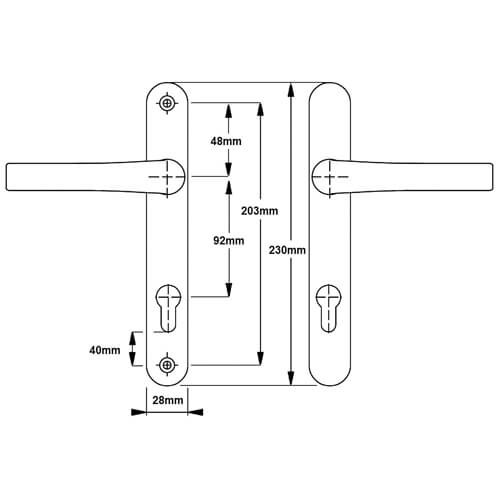

The distance between the fixing screws is 203mm with the bottom screw positioned 39mm below the euro profile cut-out.
They are supplied as a pair without spindles & fixings. See below the ordering options for spindle & screw packs.
- V-FIXKITW – 1 x spindle & 2 x white fixing screws
- V-FIXKITG – 1 x spindle & 2 x gold fixing screws
- V-FIXKITS – 1 x spindle & 2 x silver fixing screws
Additional information
| Centres PZ | 92mm |
|---|---|
| Screw Centres | 203mm |
| Backplate Length | 230mm |
| Backplate Width | 28mm |
| Spindle Size | 8mm |
| Handing | Reversible |
| Sprung Or Unsprung | Unsprung |
| Colour | Gold, Silver, White |
| Packaging | Bagged |
| Lowest Screw To Base Of Euro | 40mm |
| Top Screw To Spindle | 48mm |
